SPECIFICATIONS

Battery Included: No

Brand Name: CREALITY 3D

Certification: CE,FCC

Data interface: TypeC/USB3.0

High-concerned chemical: None

Input Power: 12V 2A

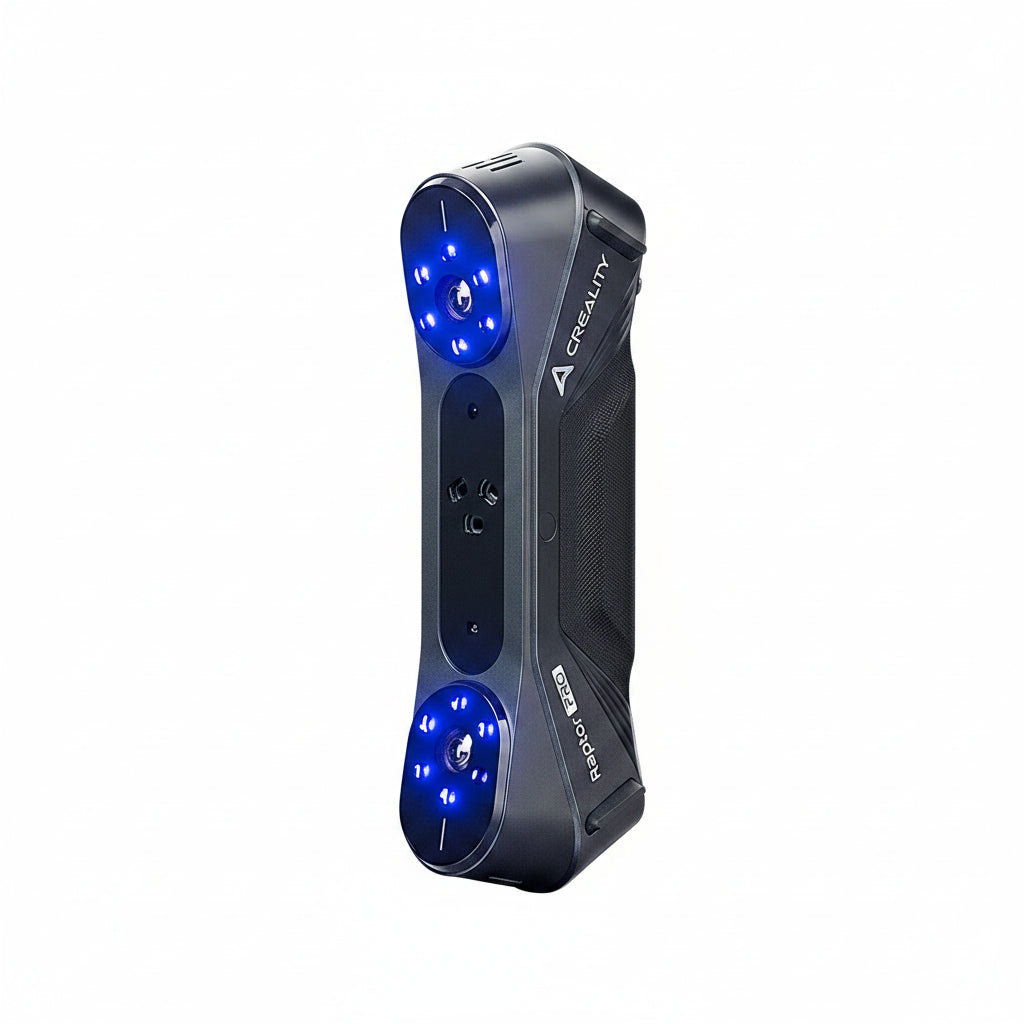

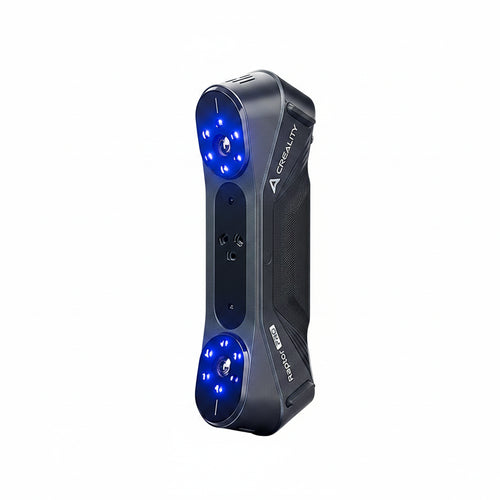

Model Number: CR-Scan Raptor

Non-Contact Active: Handhold Laser

Non-Contact Passive: Photometric Stereo

Operating humidity: 0-90%RH"

Operating temperature: -10℃ to 40℃

Origin: Mainland China

Output format: OBJ/STL/PLY

System Support: Windows macOS

Wireless Scanning: Supported

Scanning Mode 7 parallel blue laser lines 22 cross blue laser lines NIR(infrared binocular structured light)

Accuracy, up To ： 0.02mm Up to 0.075mm

Color Mapping ：Yes

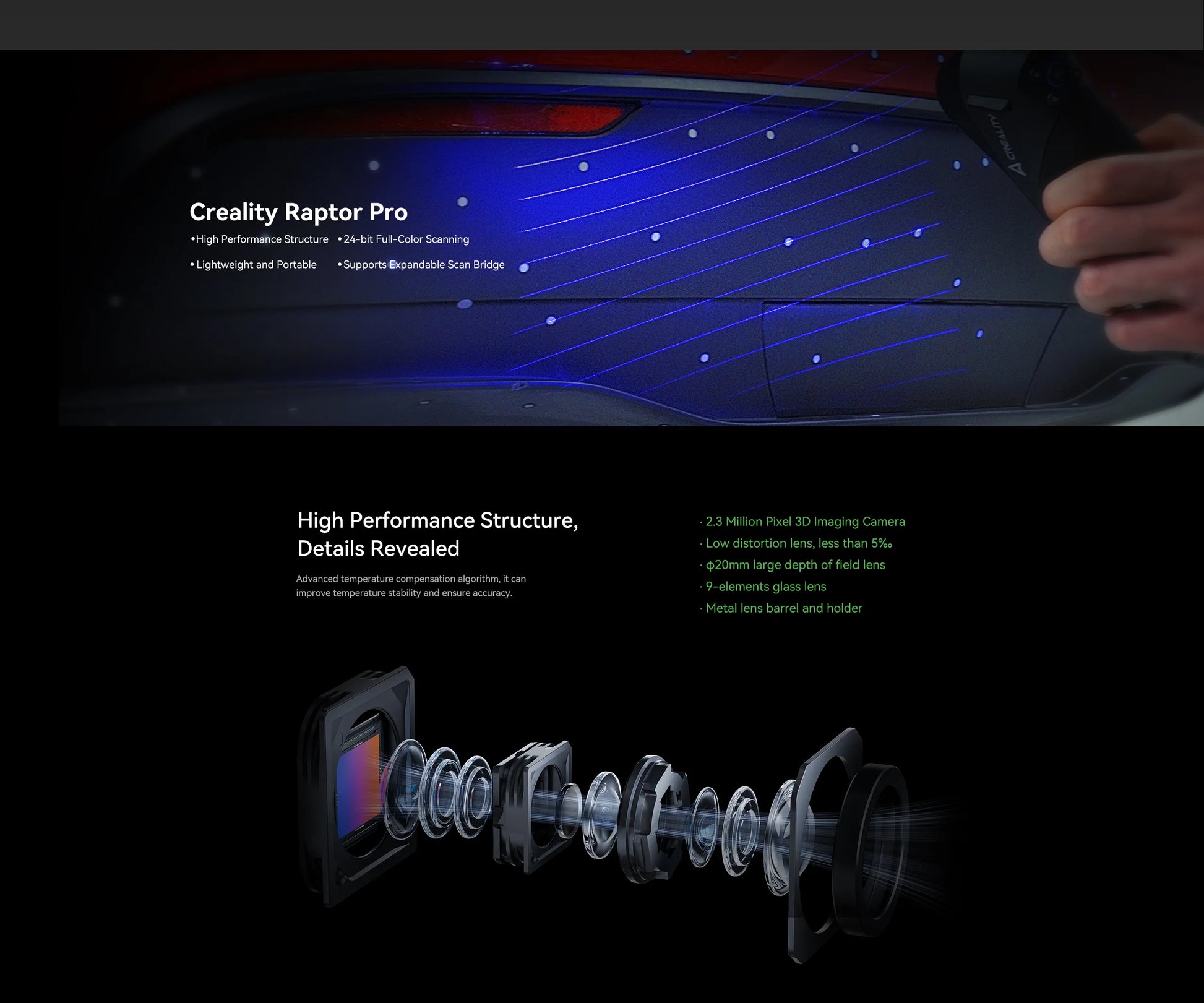

3D imaging camera resolution ：1920 × 1200

Color Supplemental Light ： 12 white LEDs

IMU：Yes

Output format ： OBJ/STL/PLY/ASC

Input Power ：12V 2A

Data interface ： TypeC/USB3.0

Device Dimensions ：215mmx50mmx74mm

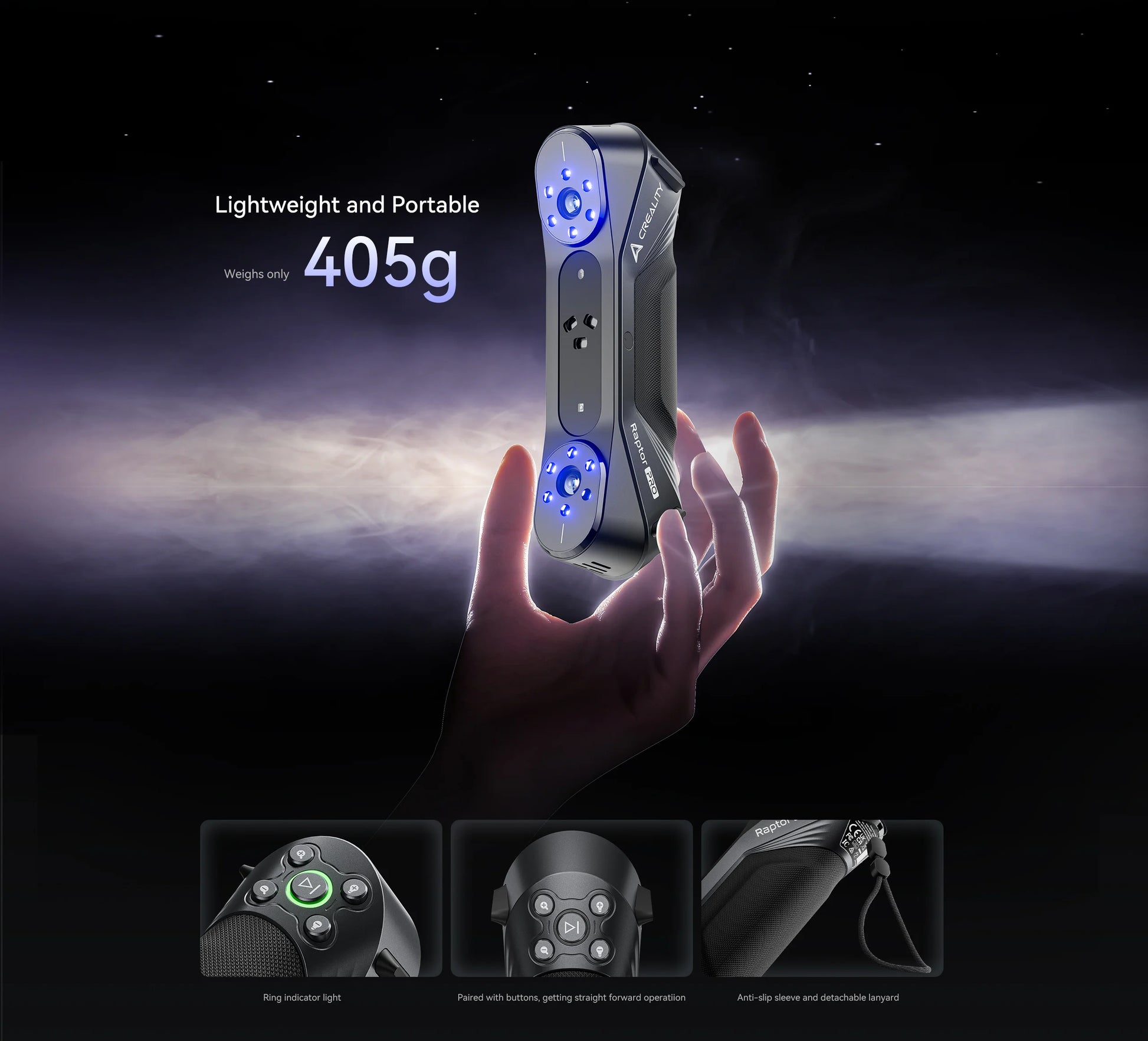

Device Weight ： 405g

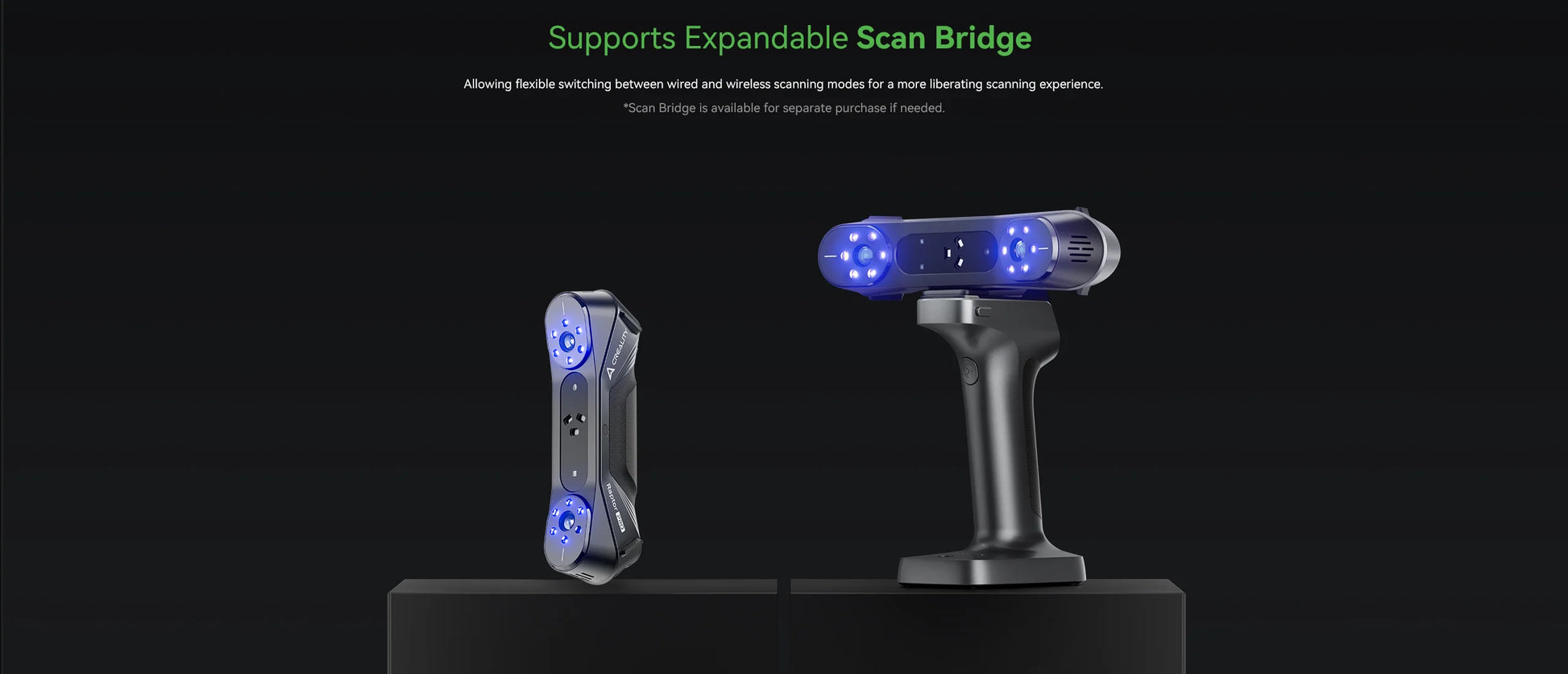

Wireless Scanning ：Supported in conjunction with wireless scanning accessories

System support ：Windows/macos

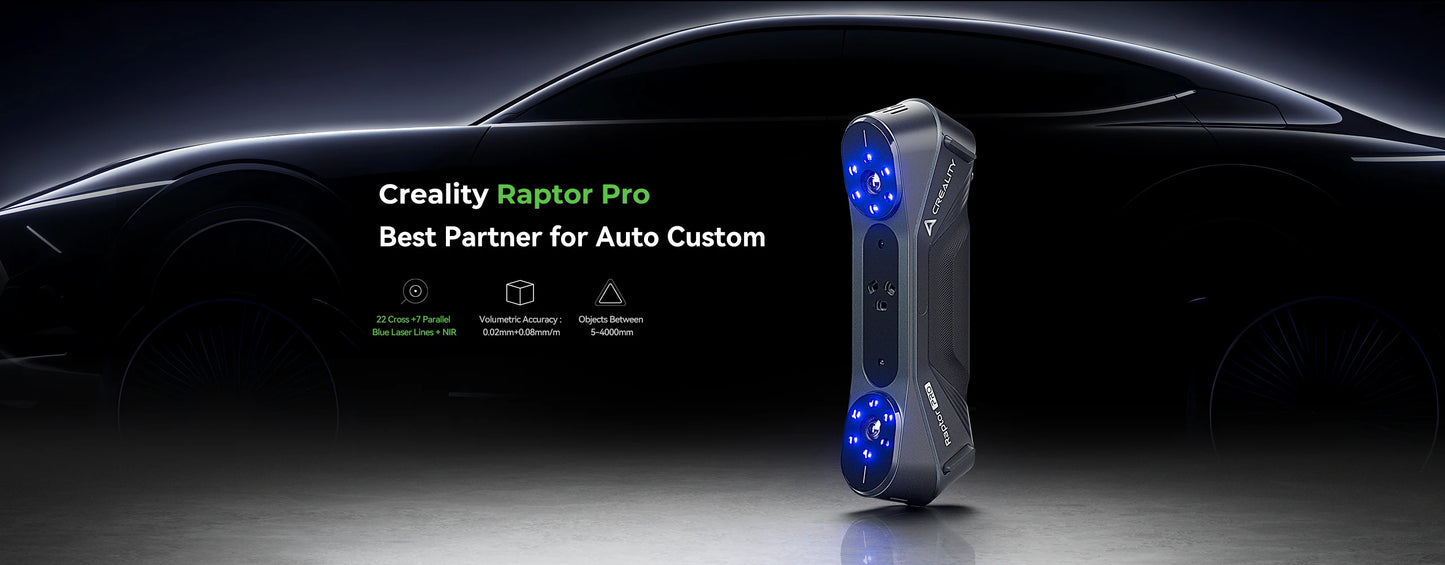

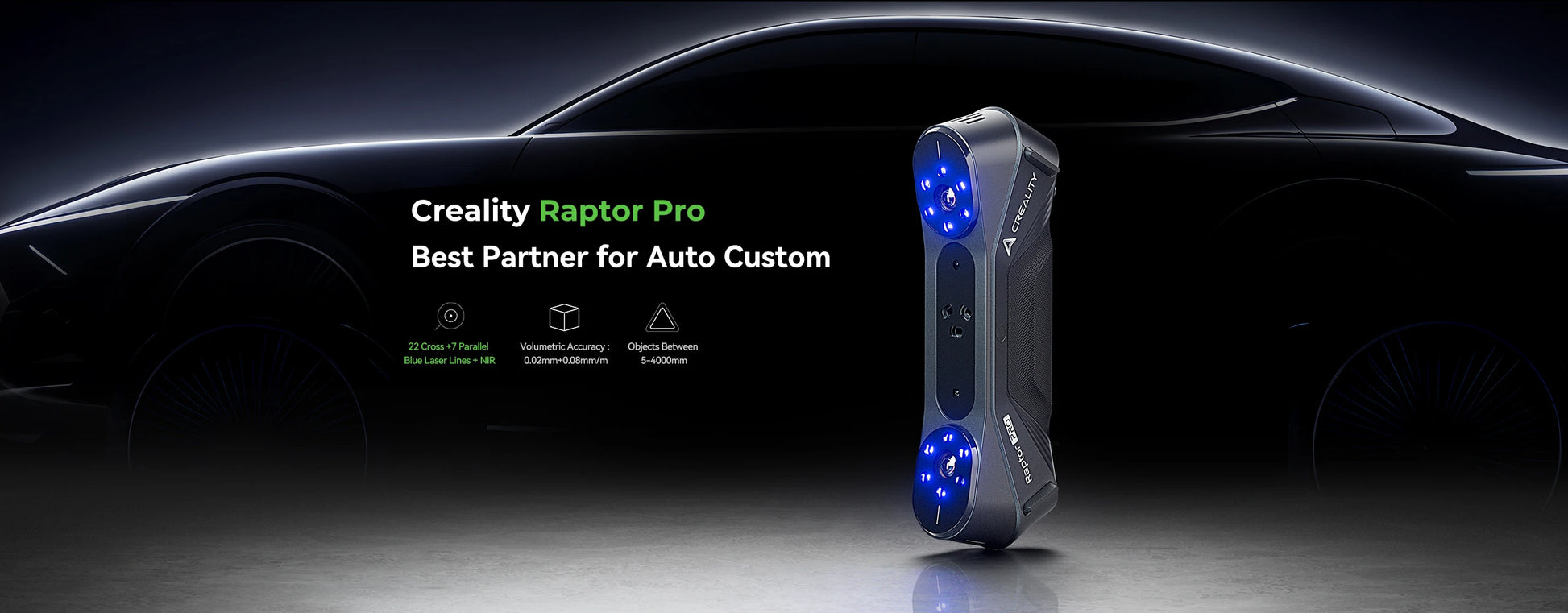

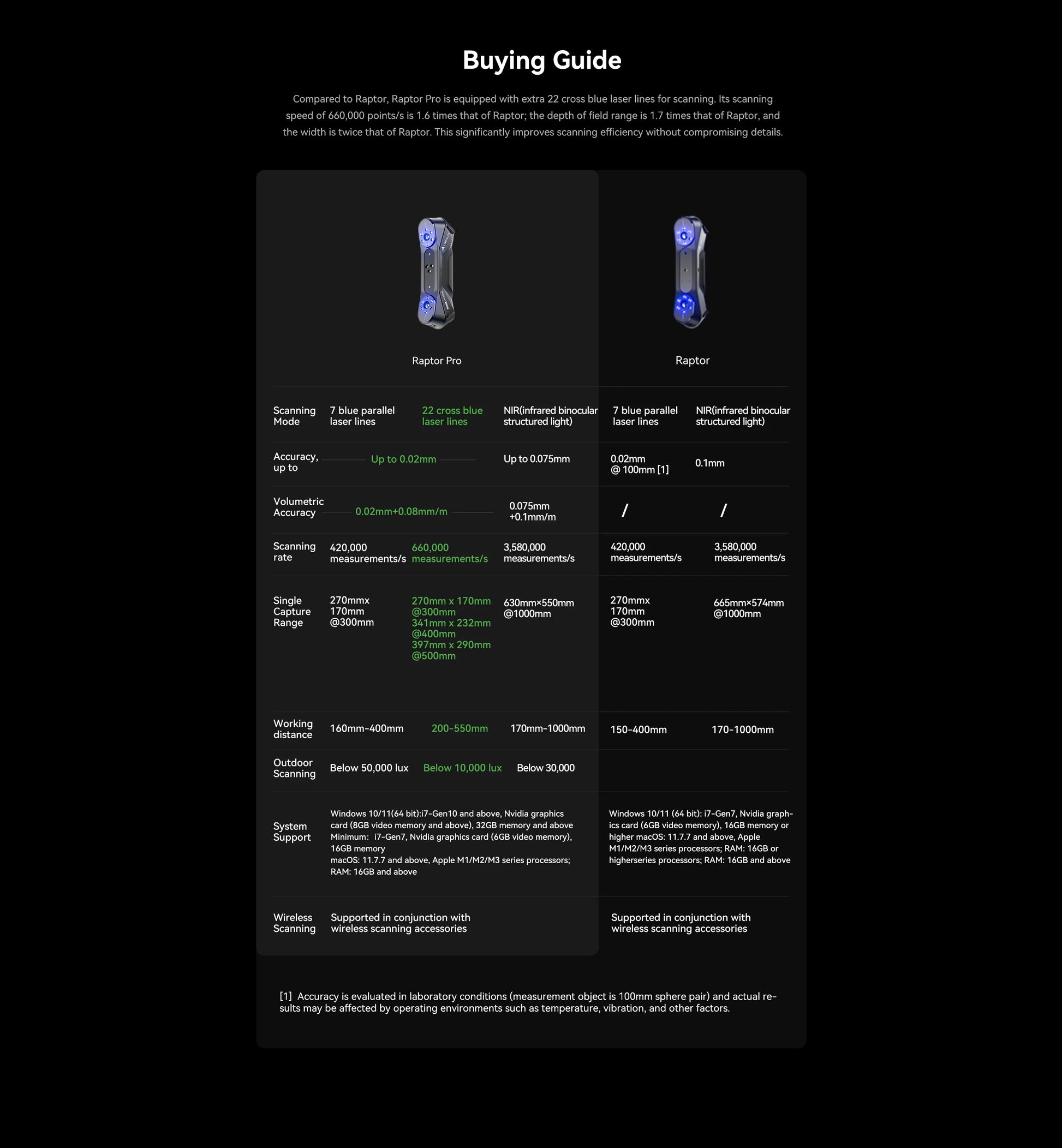

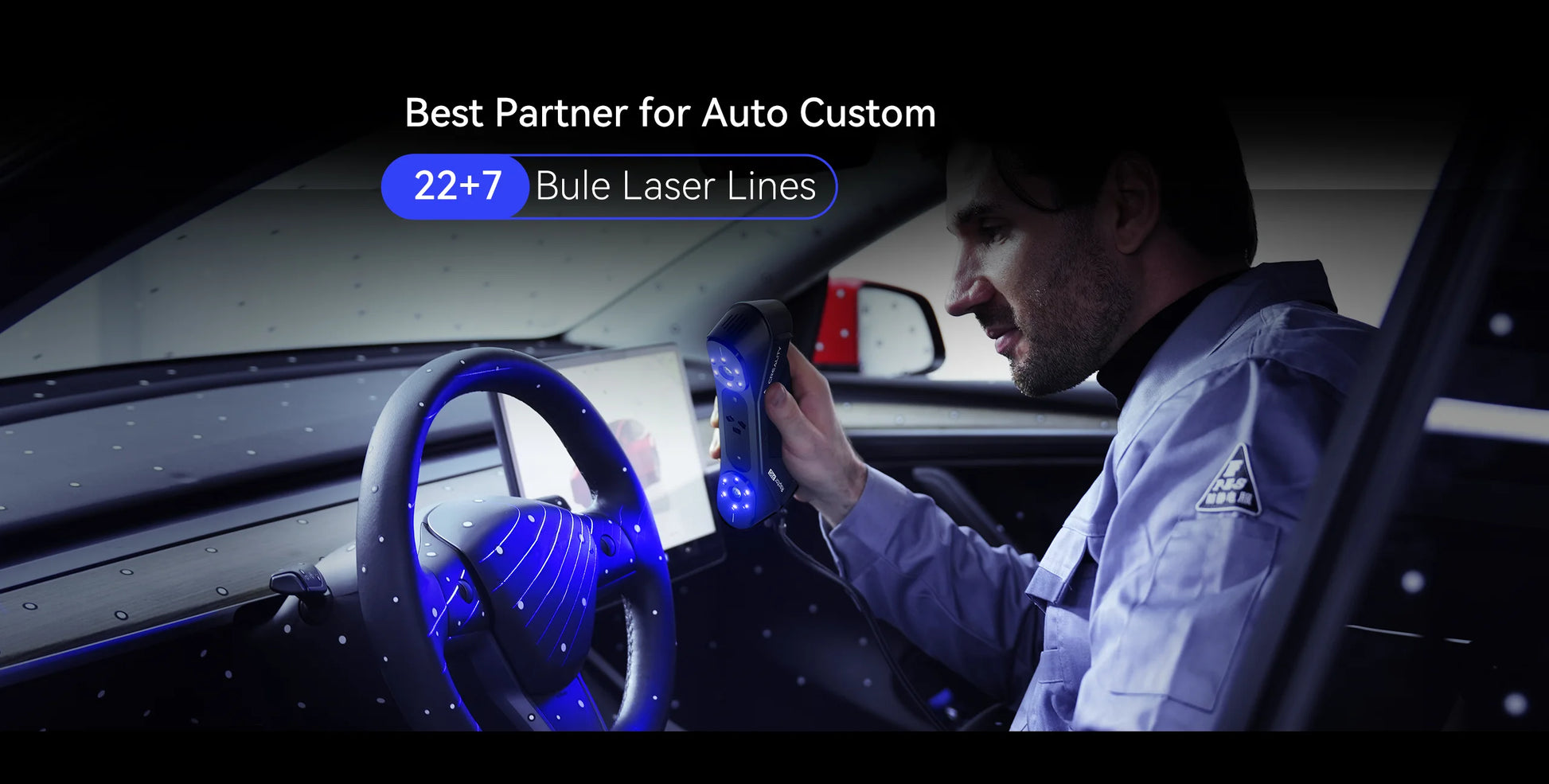

Creality Raptor Pro 3D Scanner Best Partner for Auto Custom

Scanning Mode : Blue Light(7 blue parallel laser lines&22 cross blue laser lines) / NIR(infrared binocular structured light)

Blue Light Mode: 7 blue parallel laser lines | 22 cross blue laser lines)

Accuracy: Up to 0.02mm

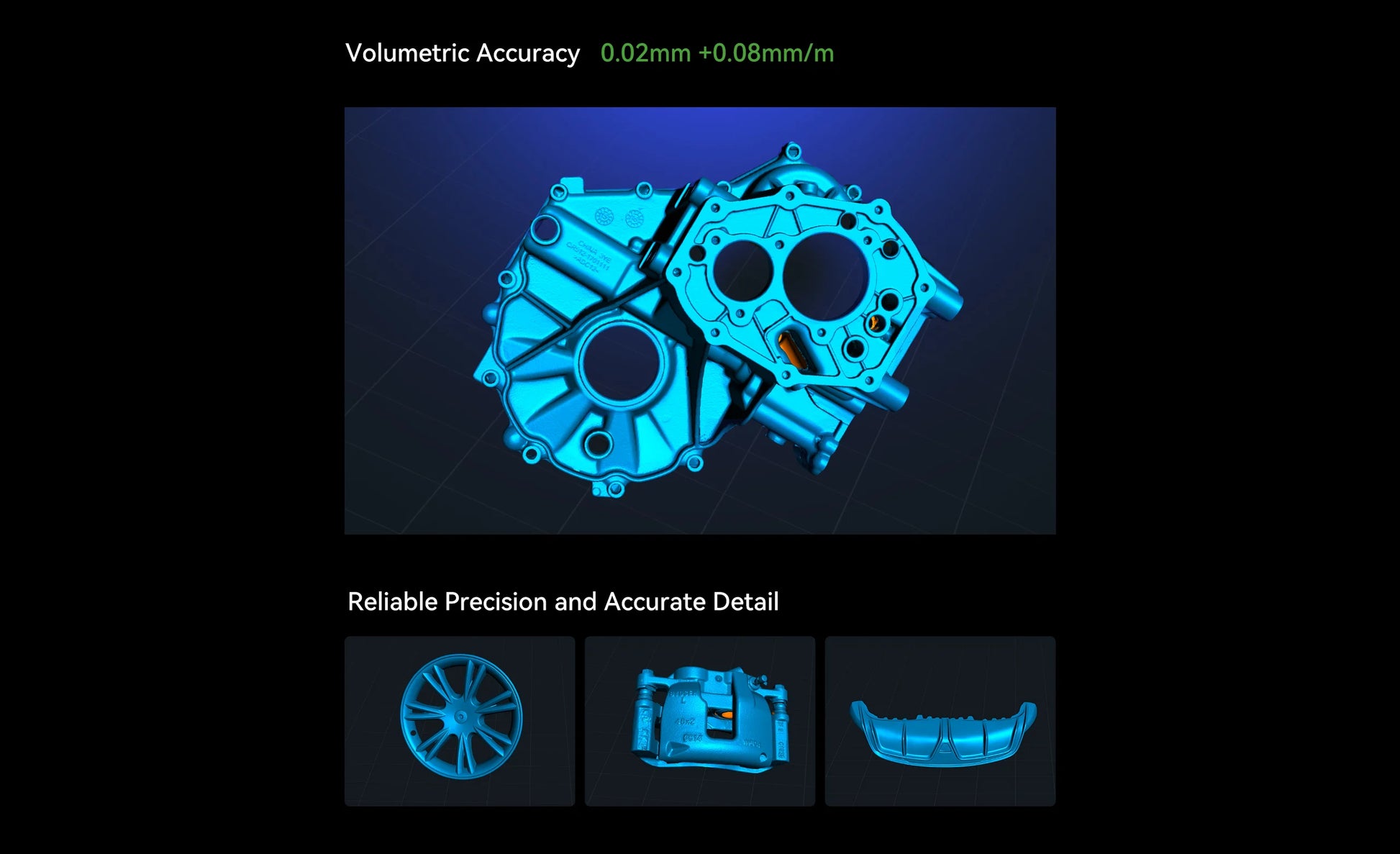

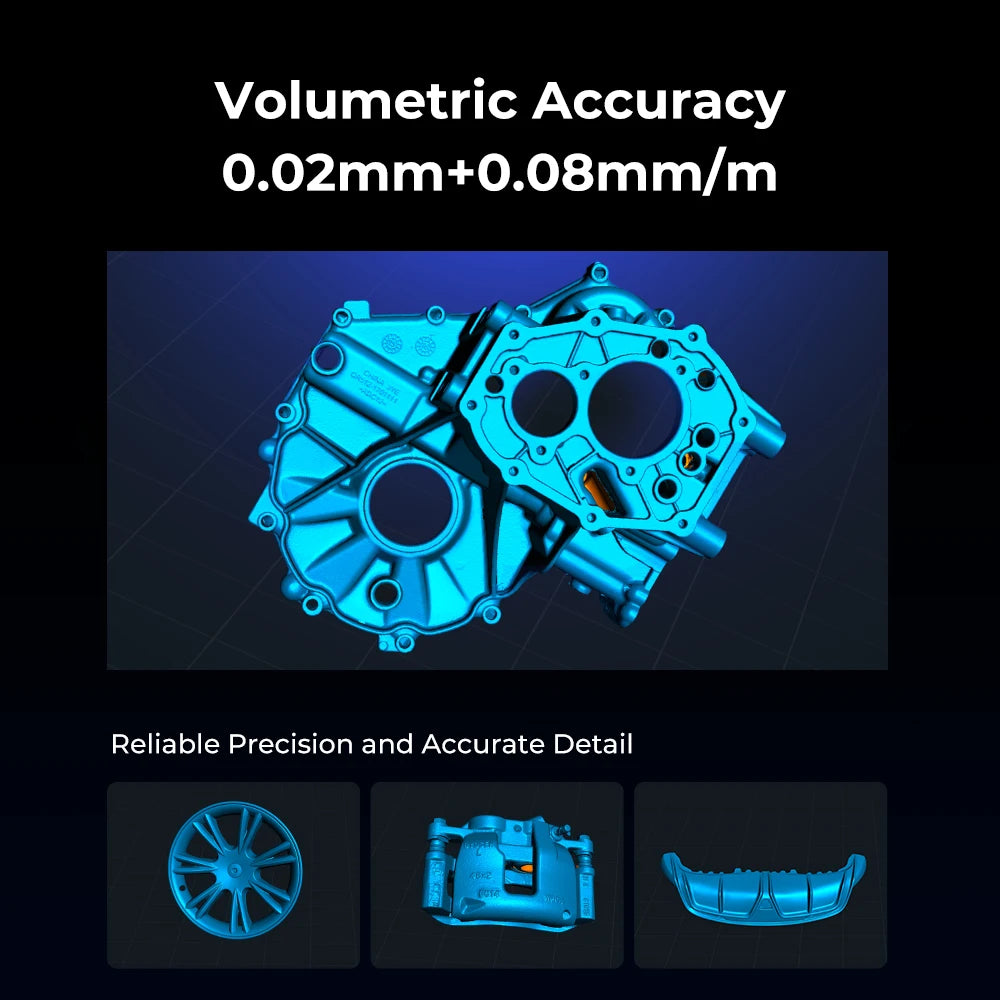

Volumetric Accuracy: 0.02+0.08mm/m

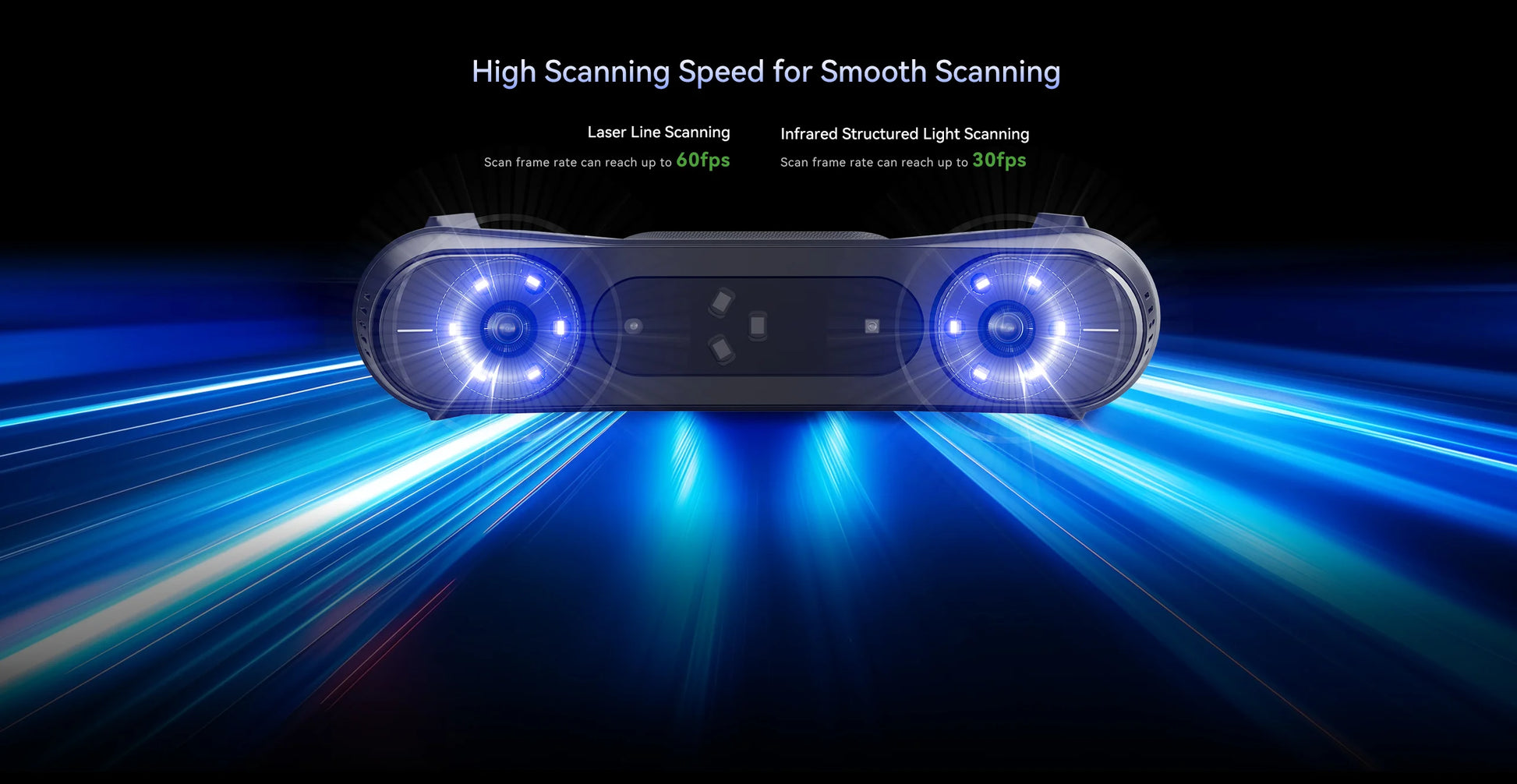

Scanning Speed: 420,000 measurements/s | 660,000 measurements/s

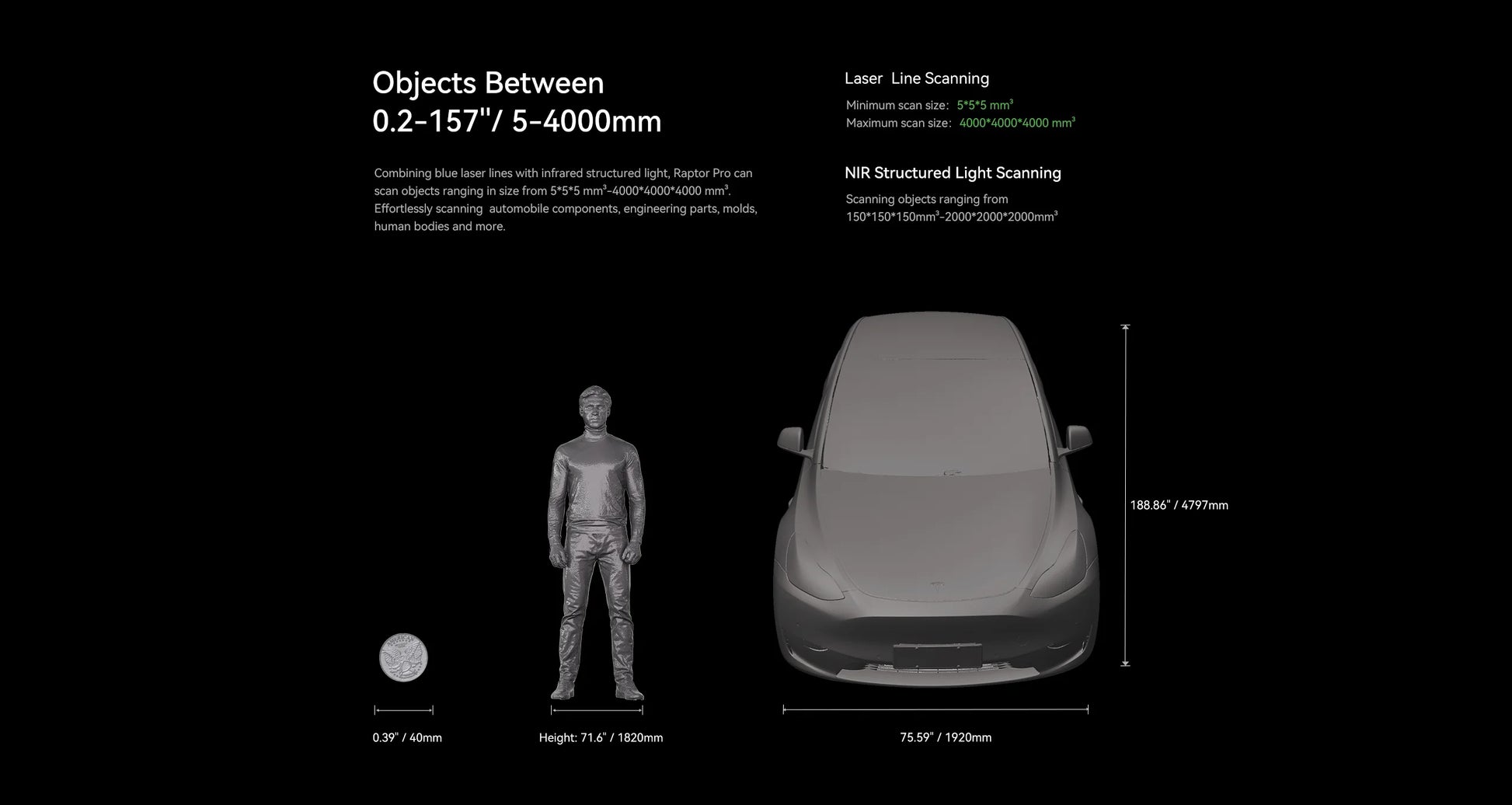

Single Capture Range: 270mmx170mm@300mm | 270mm x 170mm@300mm 341mm x 232mm@400mm 397mm x 290mm@500mm( 22 cross blue laser lines)

Single Capture Range: 270mmx170mm@300mm | 270mm x 170mm@300mm 341mm x 232mm@400mm 397mm x 290mm@500mm

Working distance: 160mm-400mm | 200-550mm

Outdoor Scanning: Below 50,000 lux | Below 10,000 lux

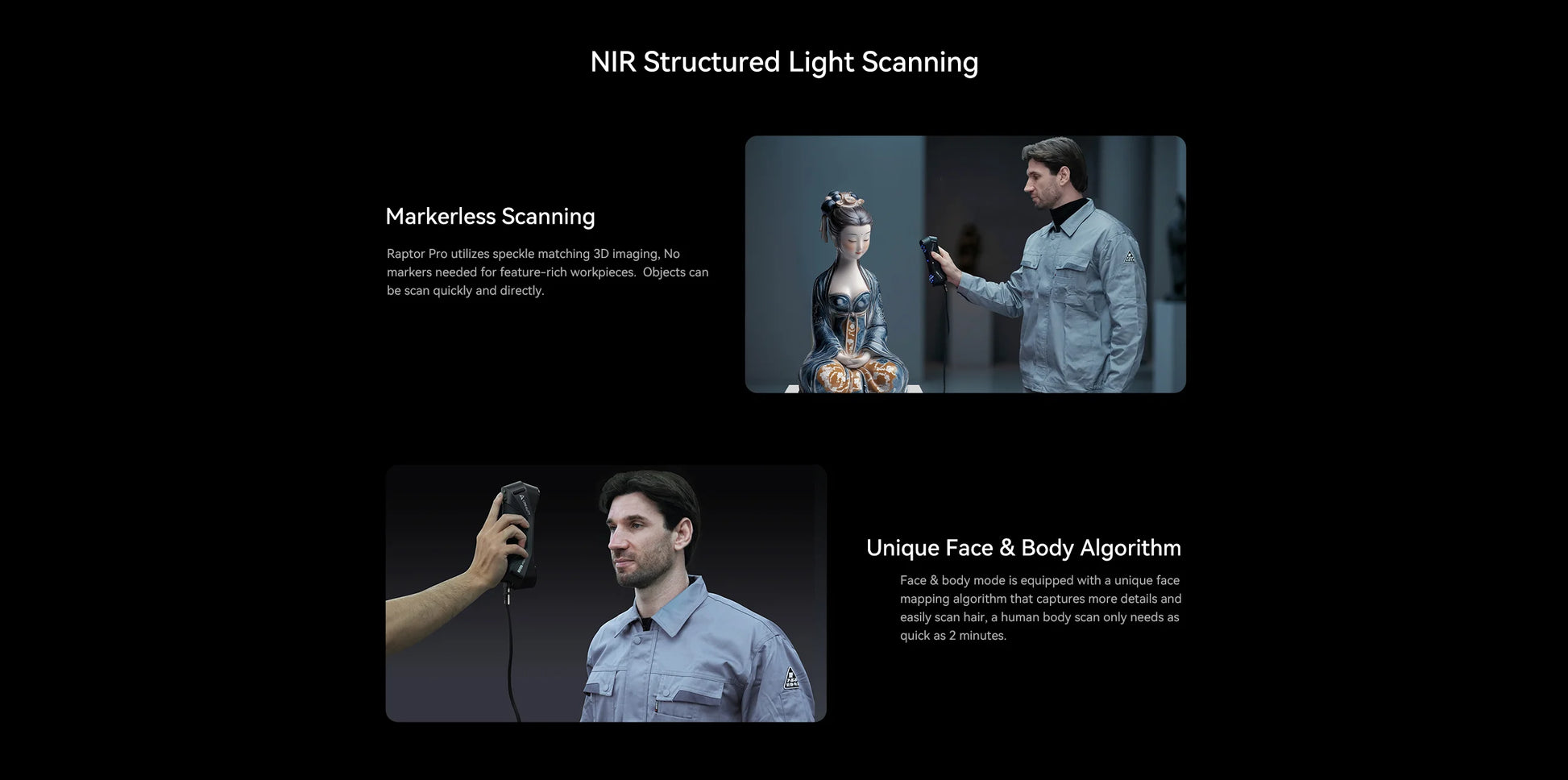

NIR(infrared binocular structured light) Mode:

Accuracy:Up to 0.075mm

Volumetric Accuracy: 0.075mm+0.1mm/m

Scanning rate: 3,580,000 measurements/s

Single Capture Range:630mm×550mm@1000mm

Working distance: 170mm-1000mm

Outdoor Scanning: Below 30,000

General Parameters:

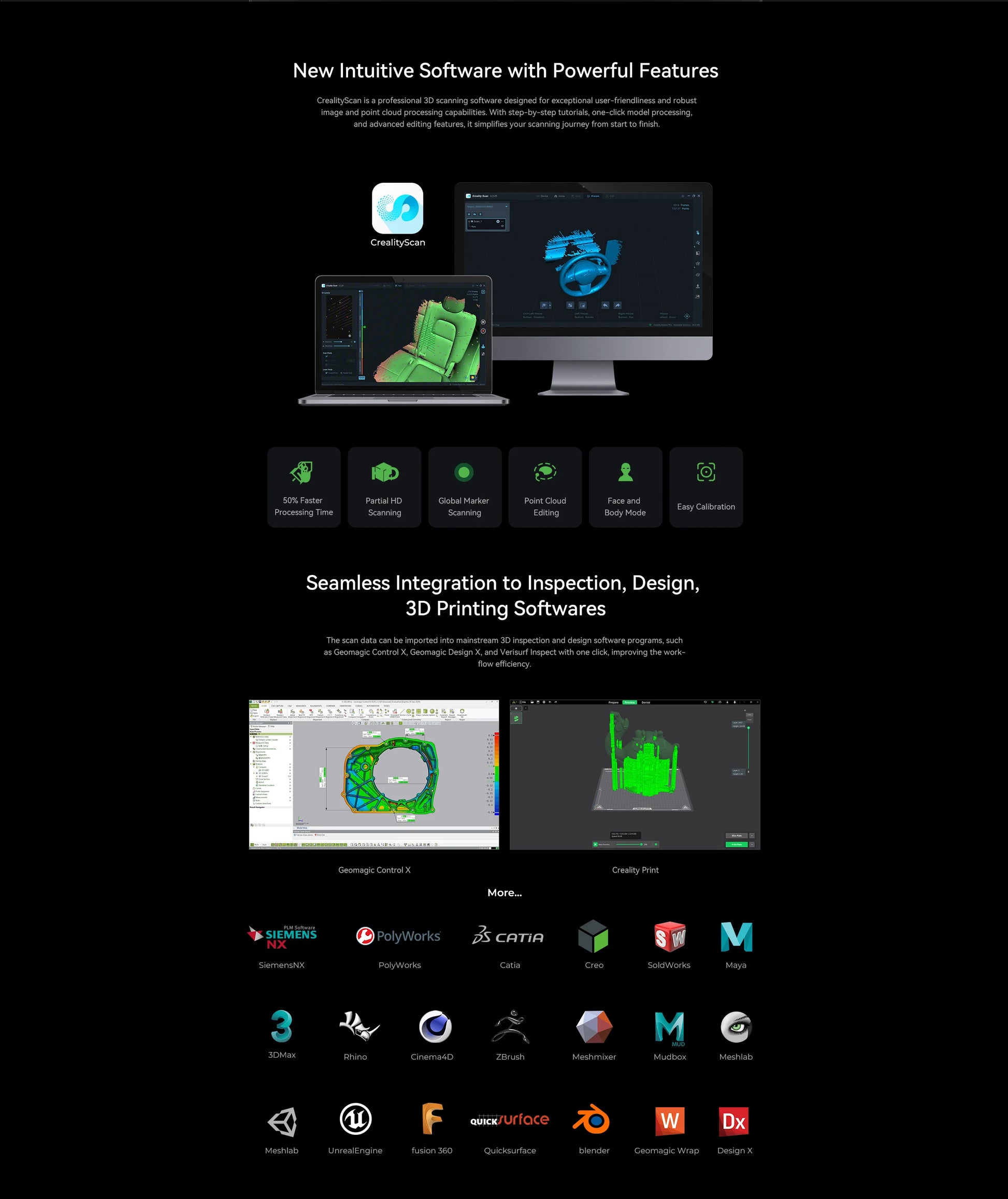

System Support: Windows 10/11(64 bit):i7-Gen10 and above, Nvidia graphics card (8GB video memory and above), 32GB memory and above Minimum:i7-Gen7, Nvidia graphics card (6GB video memory), 16GB memory macOS: 11.7.7 and above, Apple M1/M2/M3 series processors; RAM: 16GB and above

Wireless Scanning: Support
