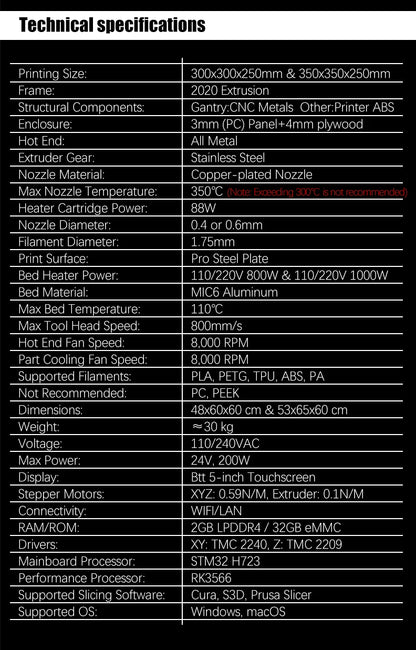

SPECIFICATIONS

Additional Features: Automatic leveling Air filtration Platform heating

Auto Leveling: Yes

Bed Temp: 90℃

Brand Name: Siboor

CE Certification: No

Category: Desktop

Certification: NONE

Color Print Speed: 30-250MM/S,60-600MM/S

Consumables Diameter: 1.75MM

Diameter Temp: 500℃

Energy efficiency class: Class I

File Format: Gcode

Fliament: PLA,ABS,TPU,PETG,PA,PC

High-concerned chemical: None

Interface Type: USB

Language: Chinese/English

Maximum Print Size: 350x350x250mm

Maximum Printing Speed: 600mm/s

Maximum Working Speed: 300mm/s

Molding Technology: FDM

Nozzle Diameter: 0.4mm

Number of Nozzles: Double nozzles

Operating System: Proximity deceleration extrusion

Origin: Mainland China

Power Supply: 110/240V Adjustable

Precision: ±0.01mm

Printing Speed: 150mm/s

Remote Printing Method: Cloud printing

Slice Software: Cura Simplify 3D Prusa Slicer

Slice Thickness: 0.12/0.16/0.2mm

Voltage: 110-220V

Whether the whole package: No

Whether to support network printing: Yes

Wireless Connectivity: Wi-Fi

Our Trident JUNE product description:

https://docs.siboor.com/siboor-trident-june

Trident JUNE BOM can be found below:

https://docs.siboor.com/siboor-trident-june/bill-of-materials

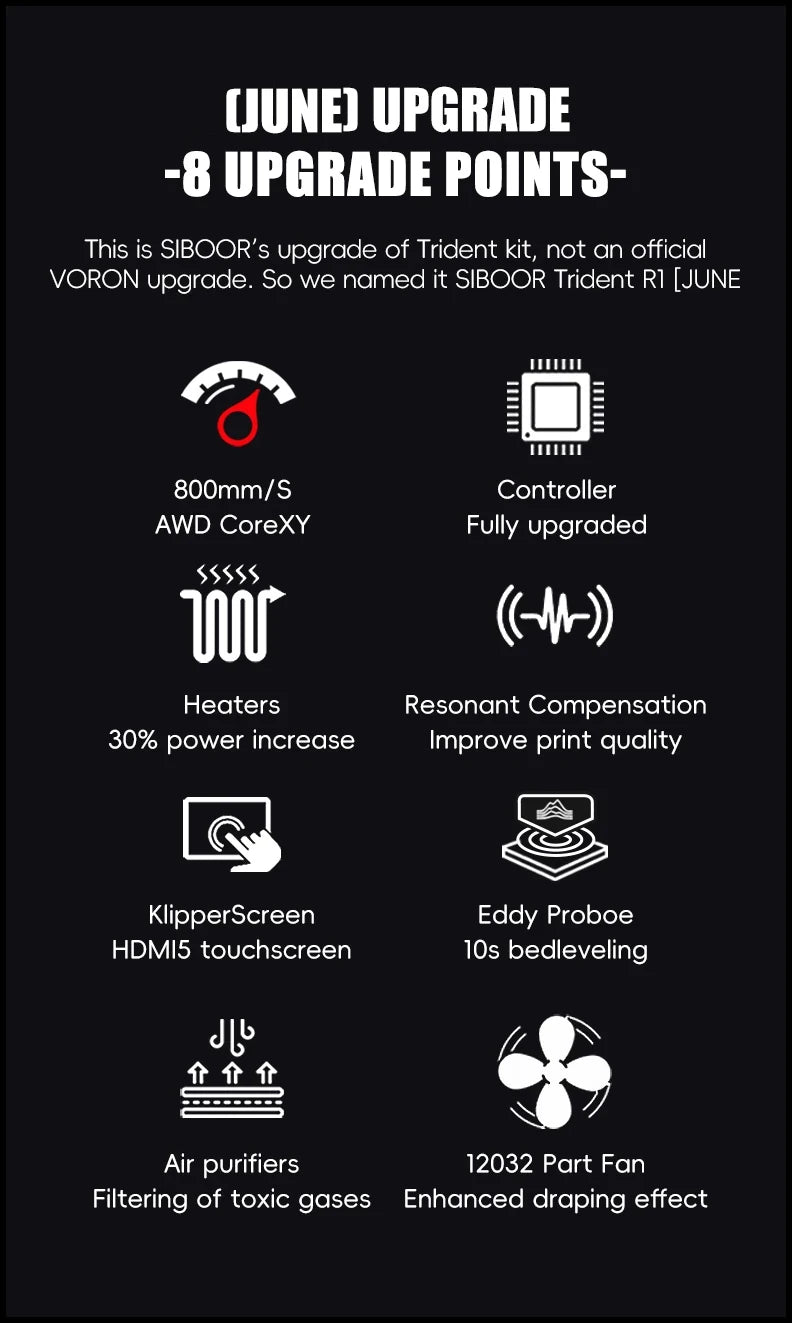

①Product Introduction

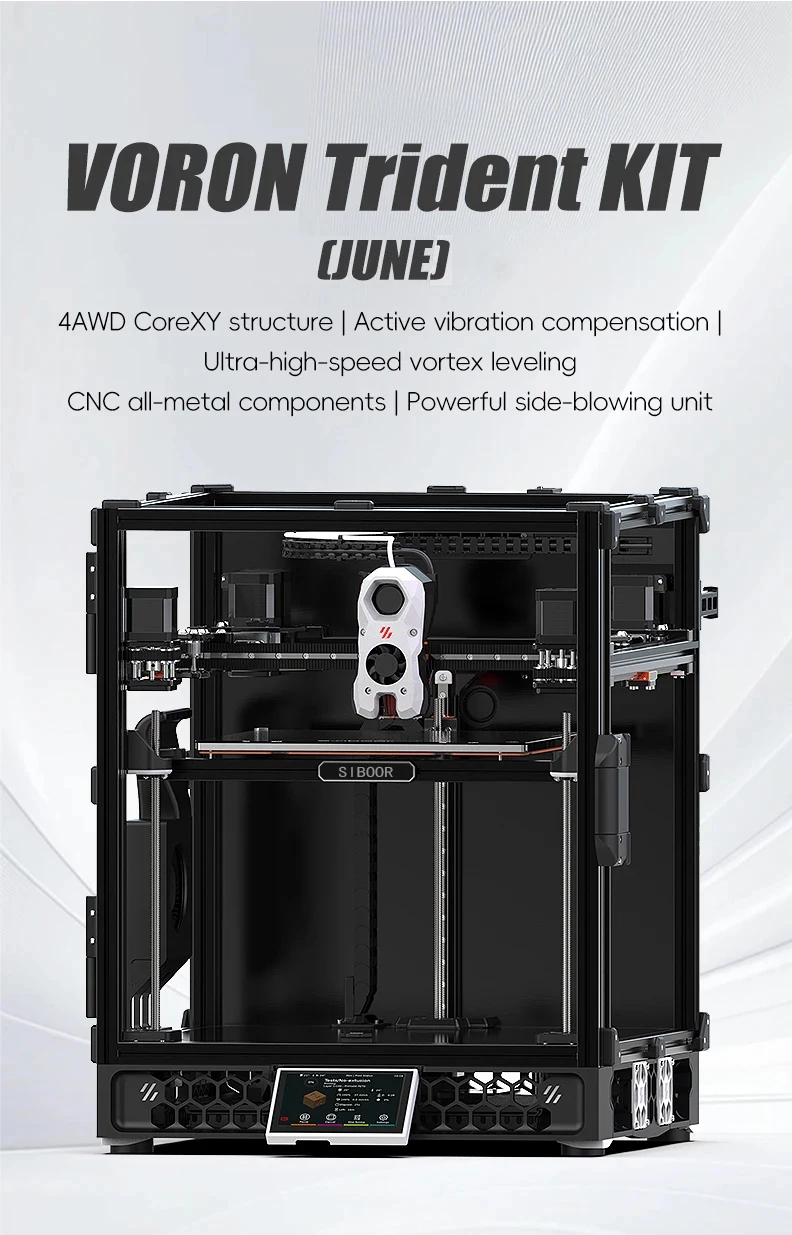

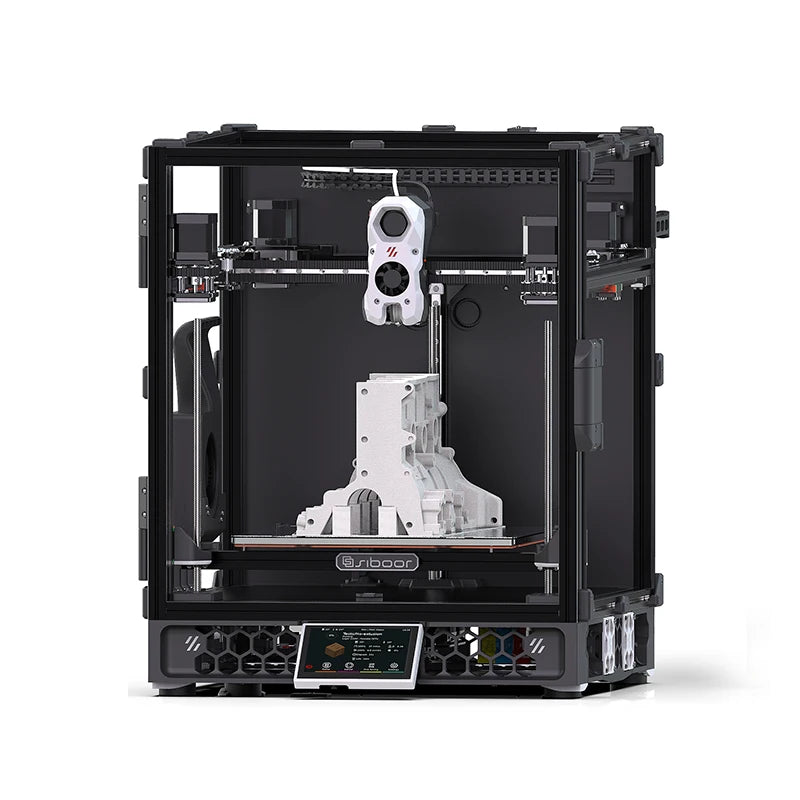

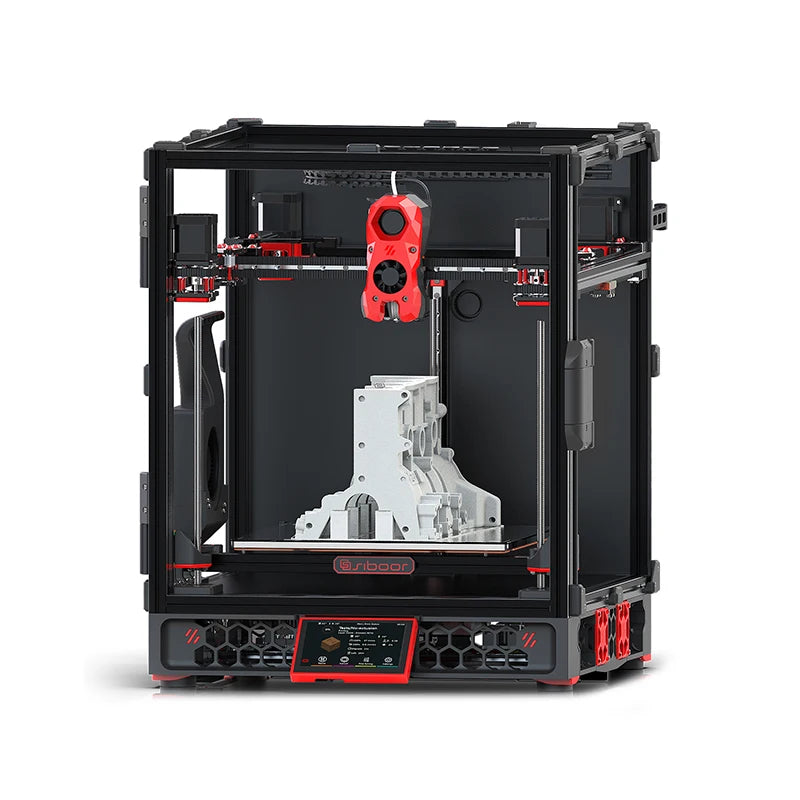

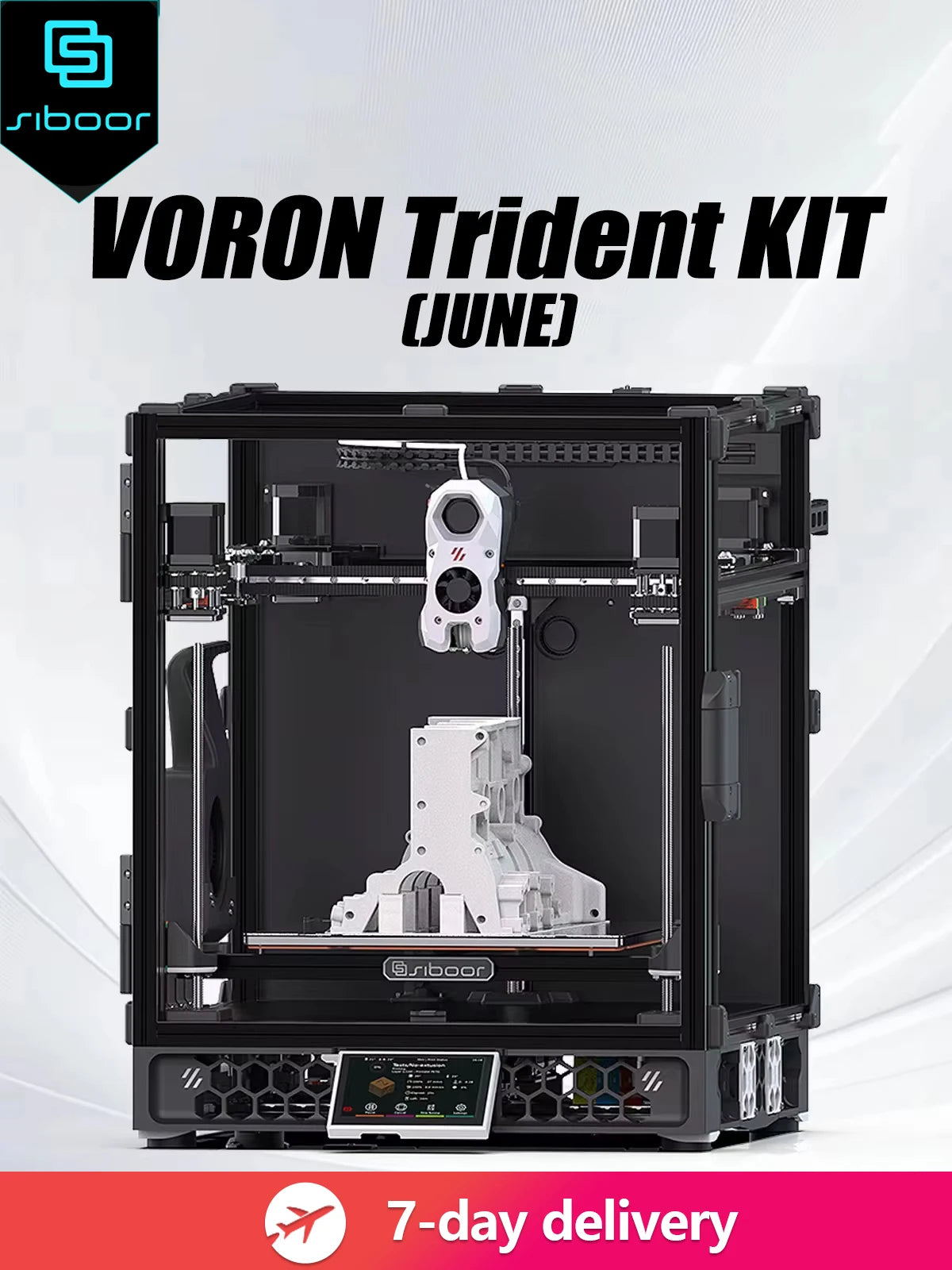

SIBOOR Trident Overview

The SIBOOR Trident is an advanced 3D printer that stands out for its exceptional performance and precision. Here’s a detailed look at its key features and components:

Key Features:

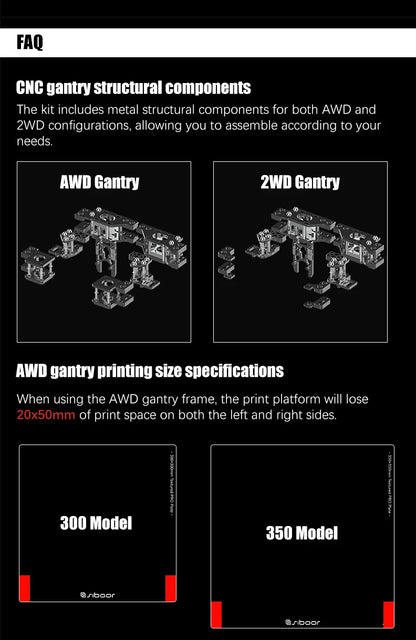

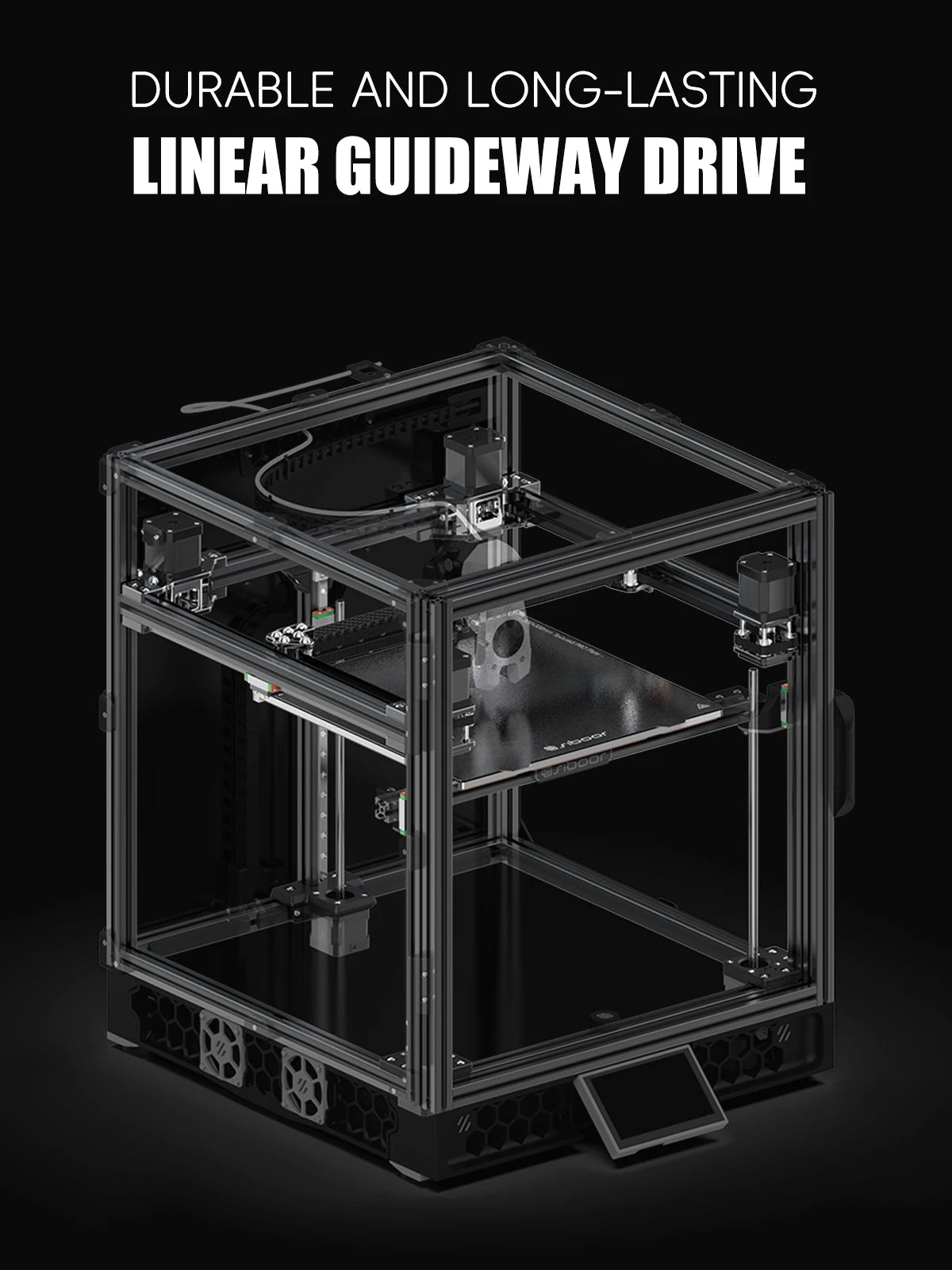

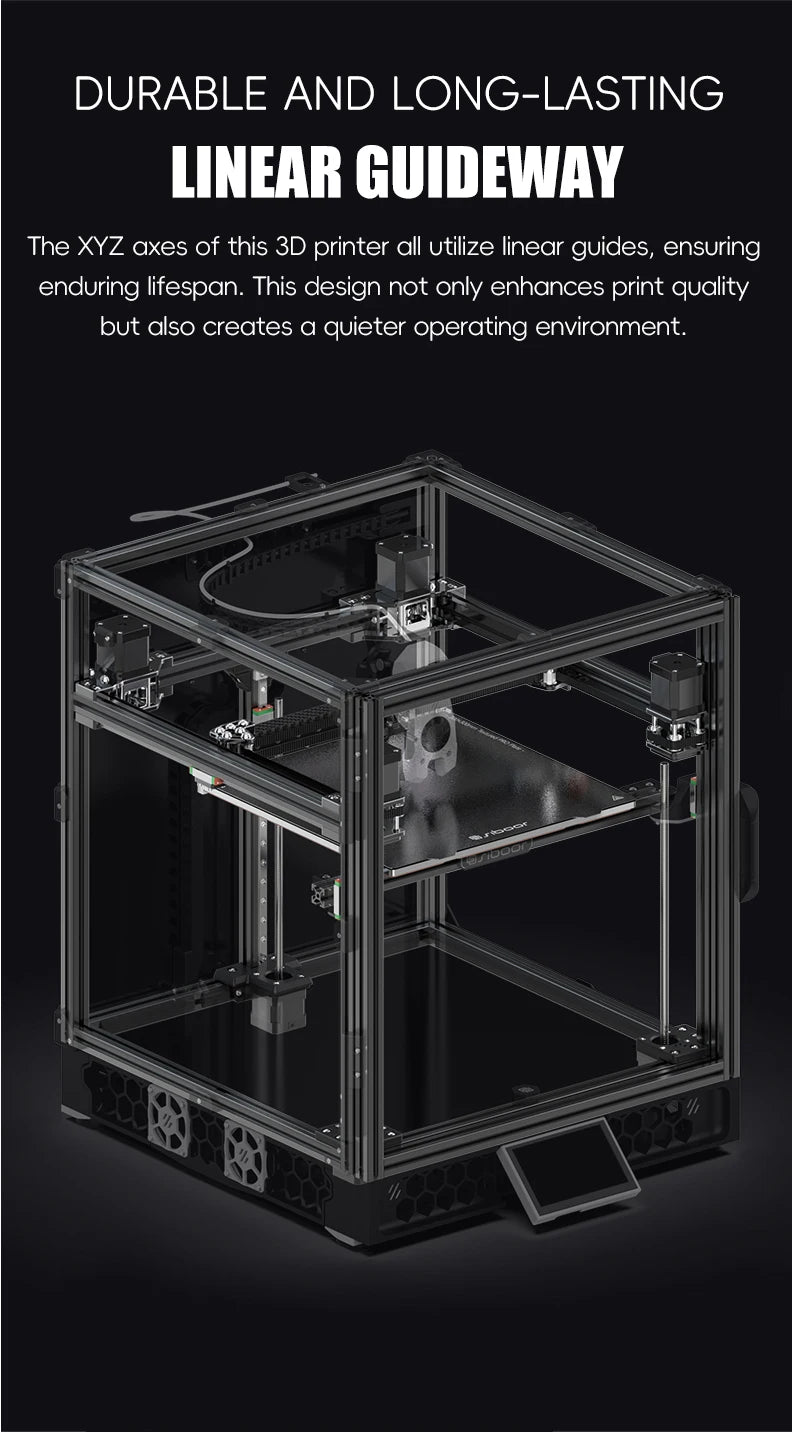

Robust Metal Gantry: Provides a stable and sturdy printing framework.

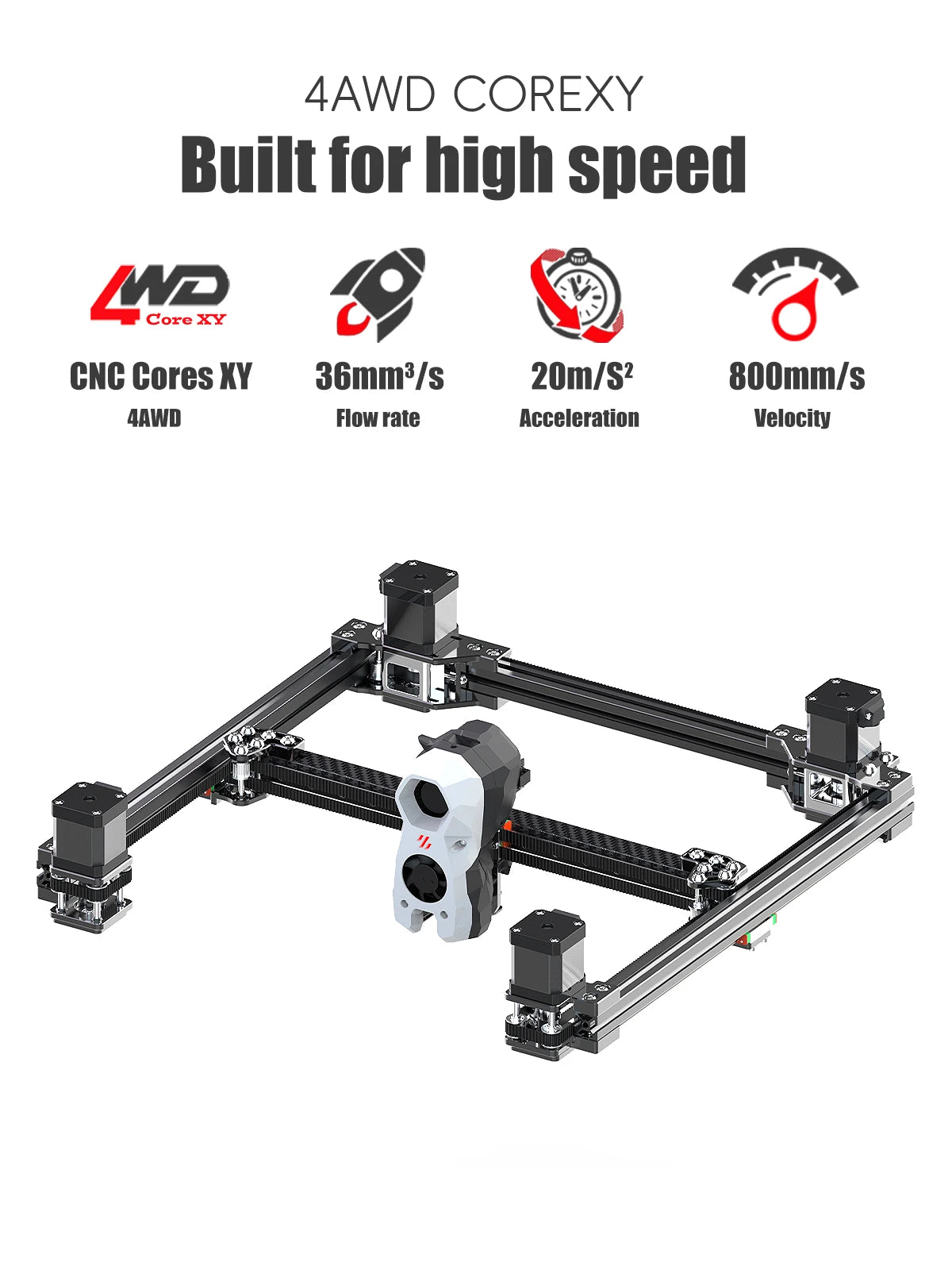

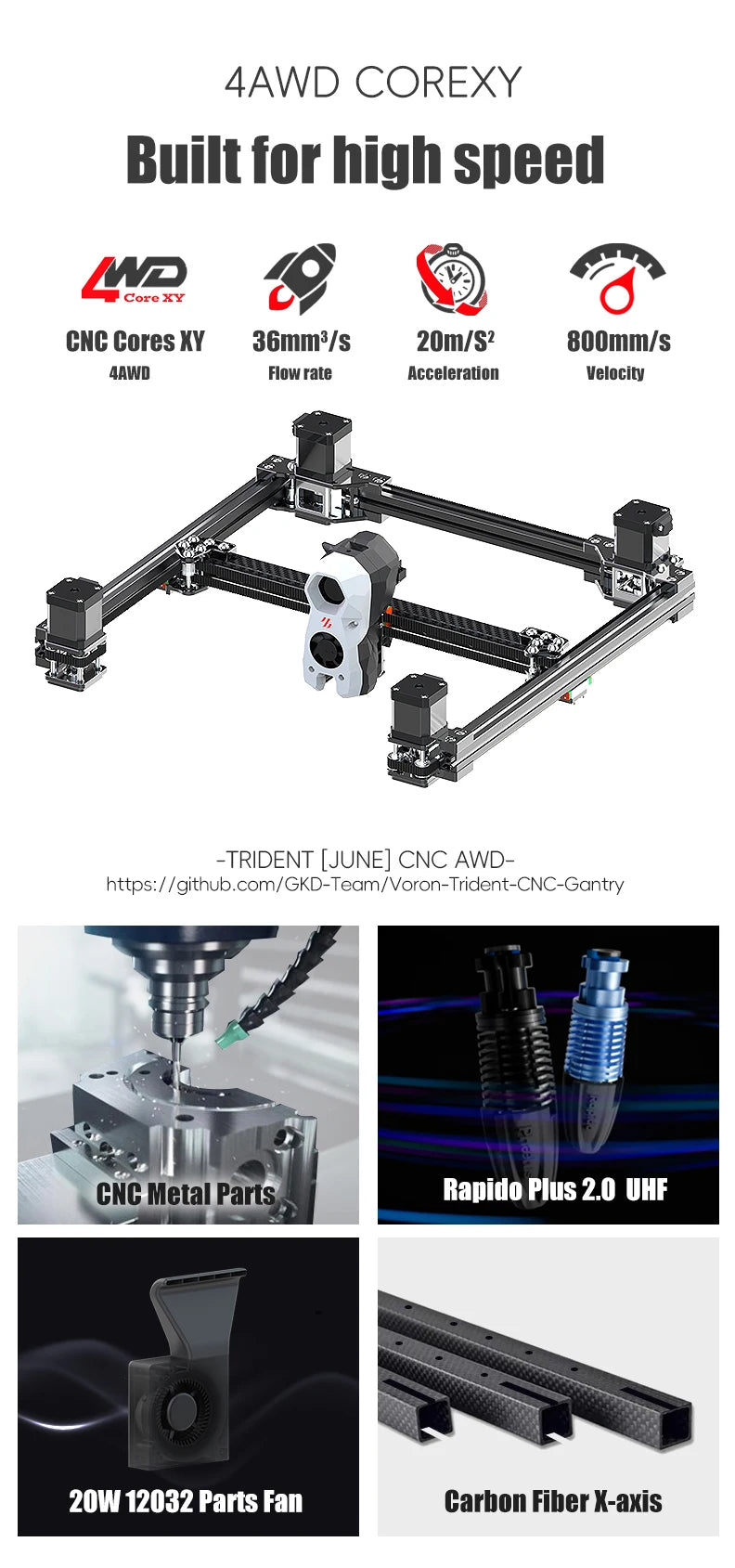

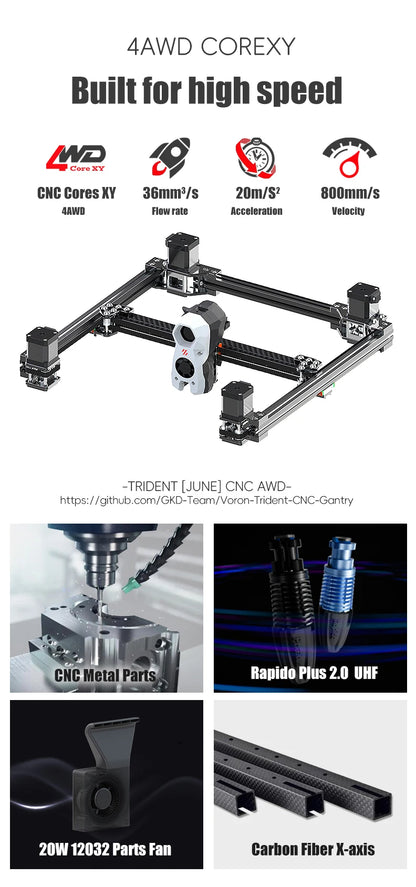

AWD Four-Wheel Drive: Ensures smooth operation with a 9mm synchronous belt.

Reinforced X-Axis: Utilizes a carbon fiber tube for added strength and rigidity.

Rapido 2.0 UHF Hotend: Capable of reaching up to 320°C, with a flow rate up to 36 cubic millimeters per second, for high-performance printing.

Performance:

Acceleration: Achieves up to 20,000 mm/s² for rapid and precise movements.

Printing Speed: Delivers up to 800 mm/s for high-speed printing.

Advanced Technology:

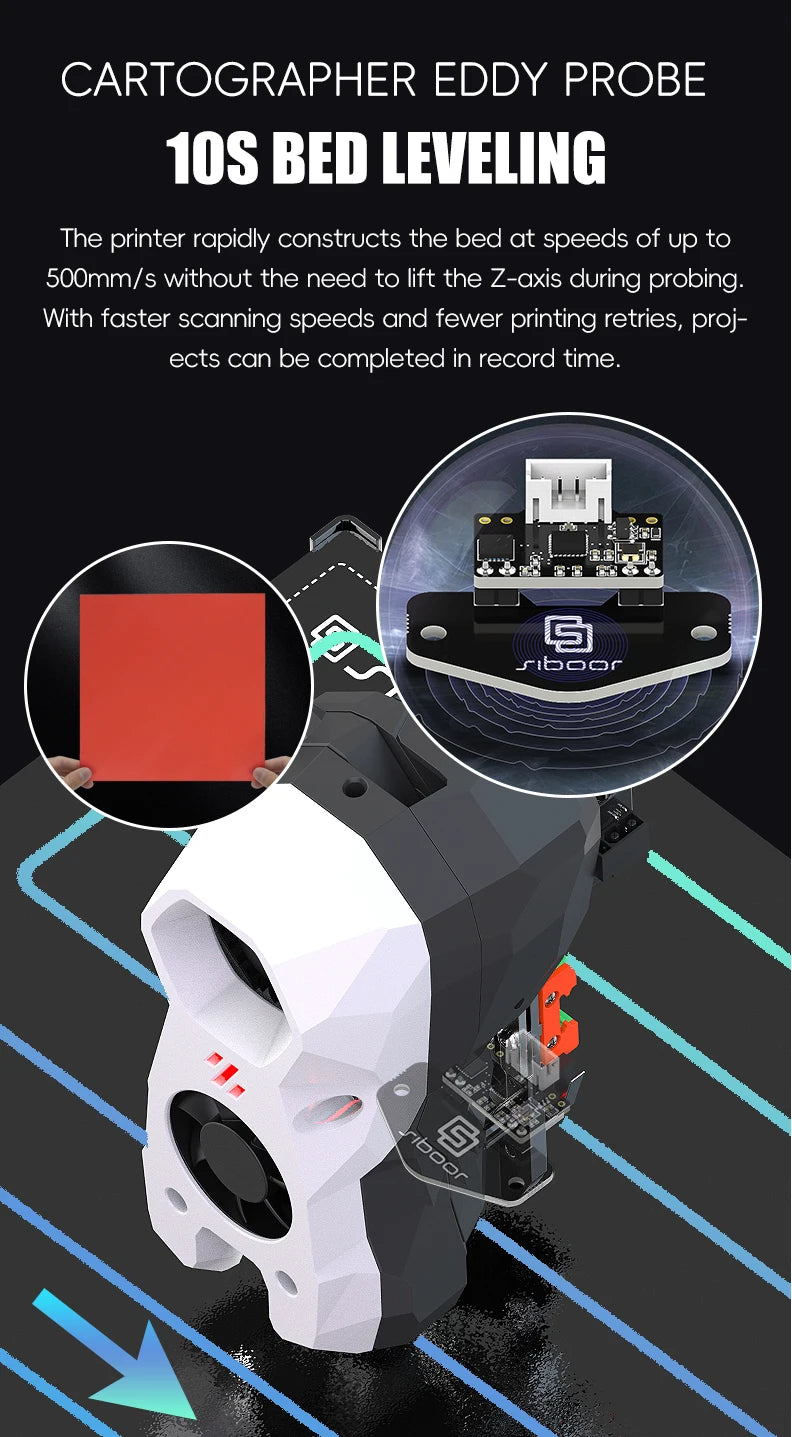

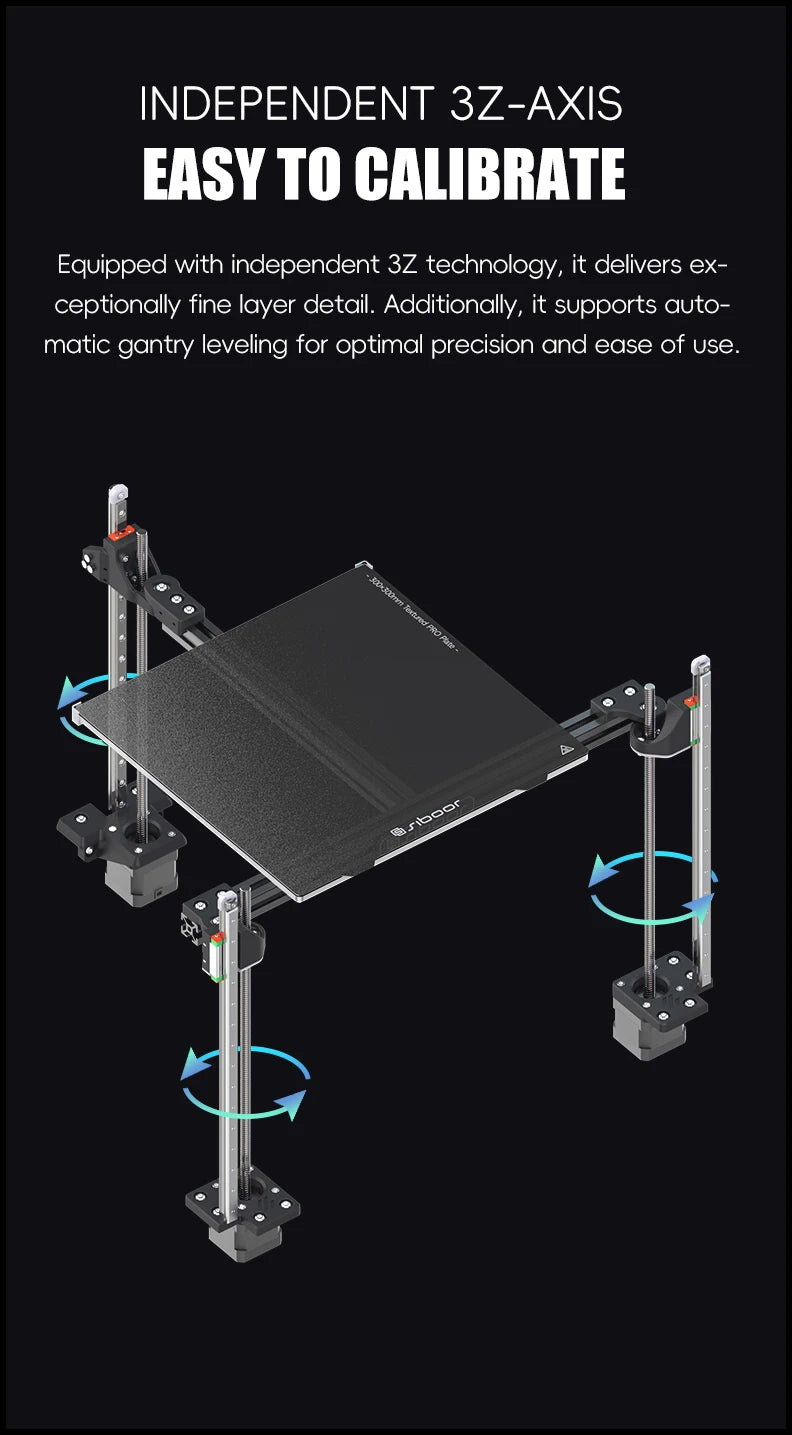

Cartographer Eddy Current Sensor: Generates a bed mesh in just 10 seconds, complemented by a 3Z full gantry leveling system for accurate calibration.

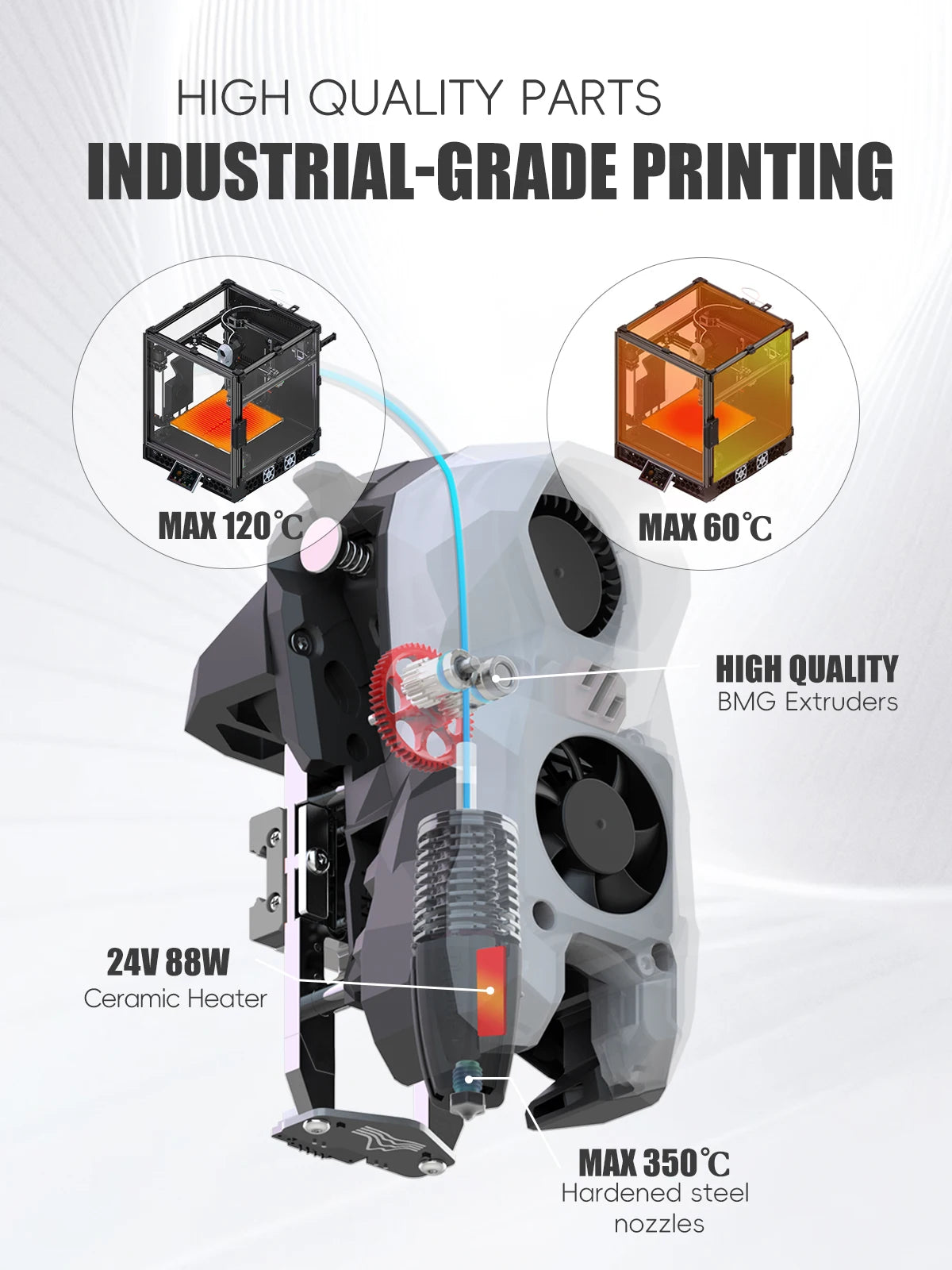

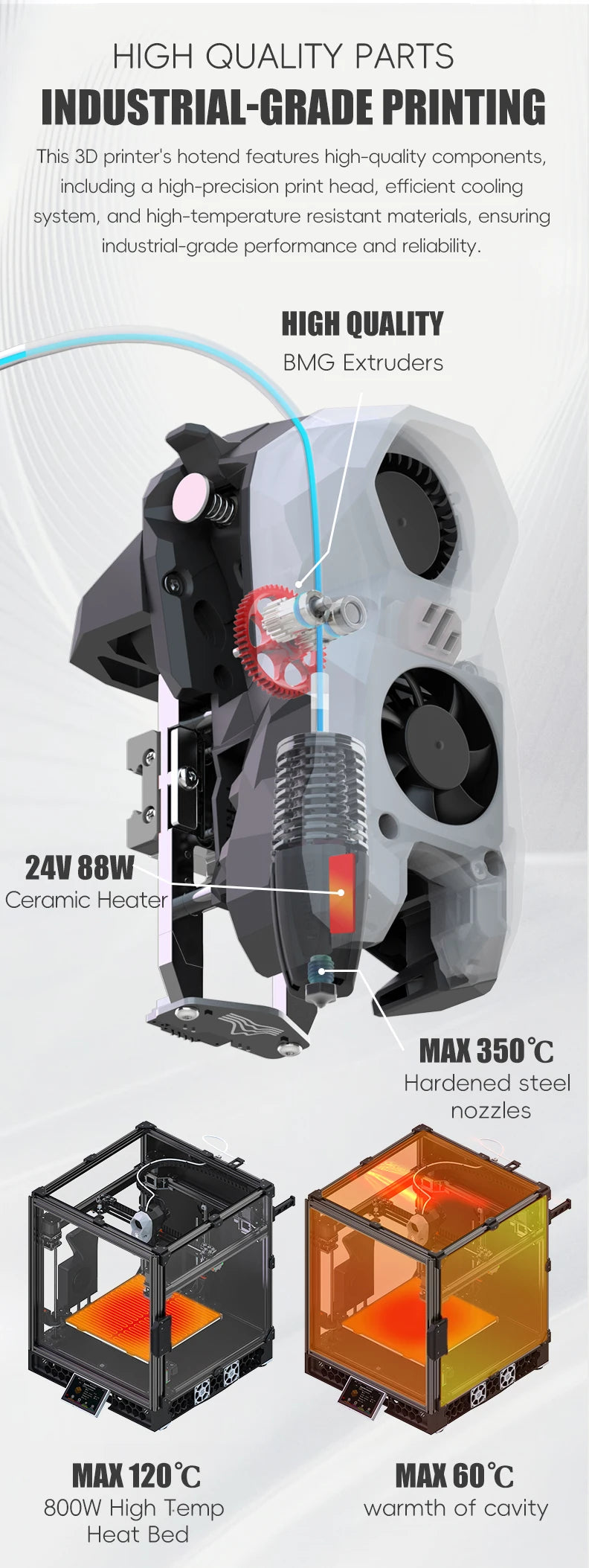

Stealthburner Extruder: Supports high-performance printing with chamber temperatures up to 60°C.

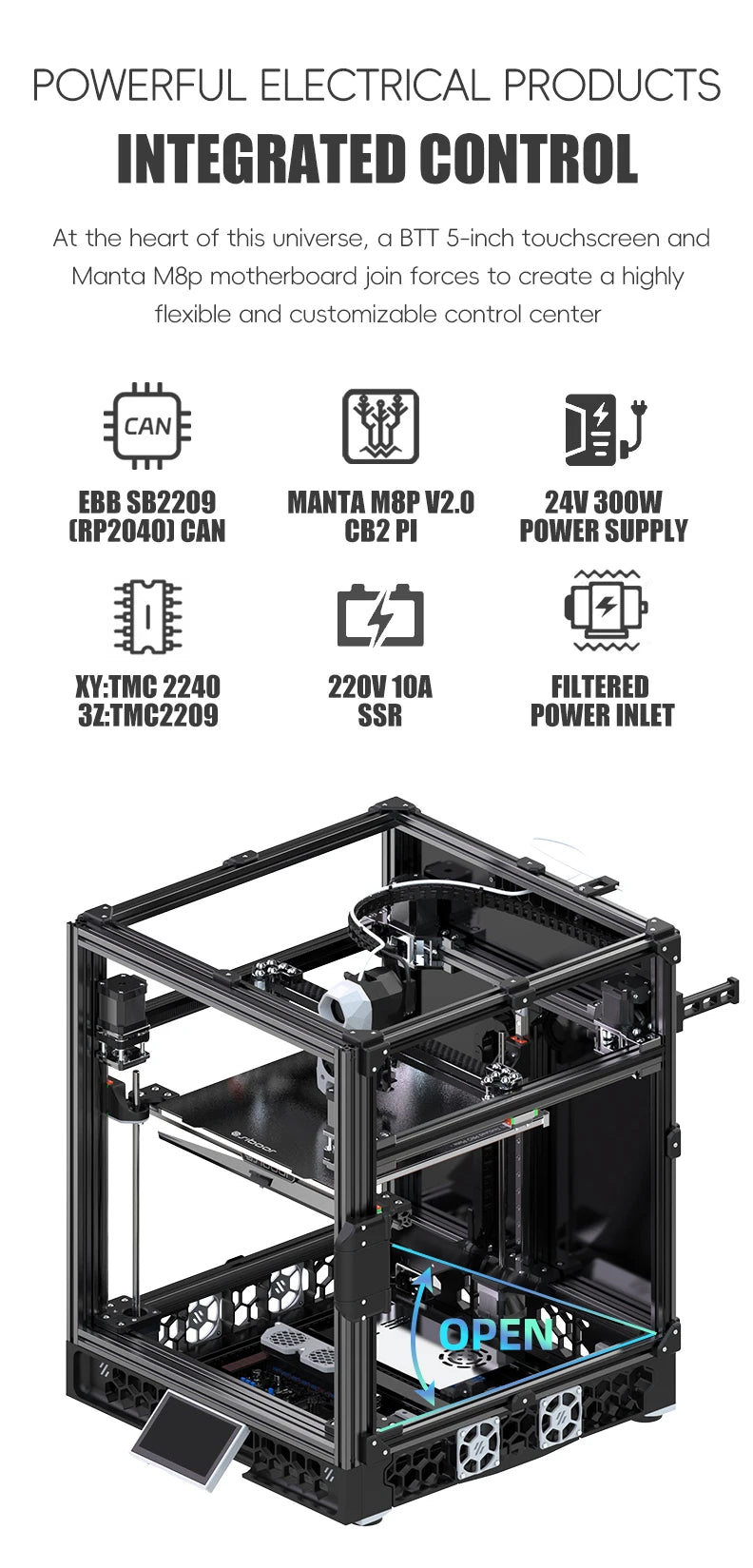

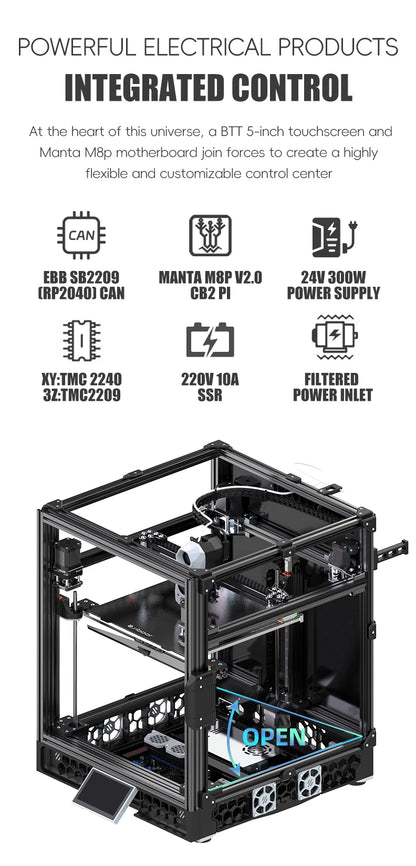

Electrical Components:

MANTA M8P 2.0 Mainboard: Provides robust control with a 350W high-power supply.

CB2 PI: Features powerful processing capabilities, enhancing the printer’s overall performance.

TMC2240 Drivers: Ensures smooth and quiet XY movements.

SB2209 RP2040 Tool Board: Efficiently manages the hotend.

Power Supply and Filtering:

350W High-Power Supply: Delivers reliable power for optimal performance.

Filtered Power Switch: Provides additional protection and stability.

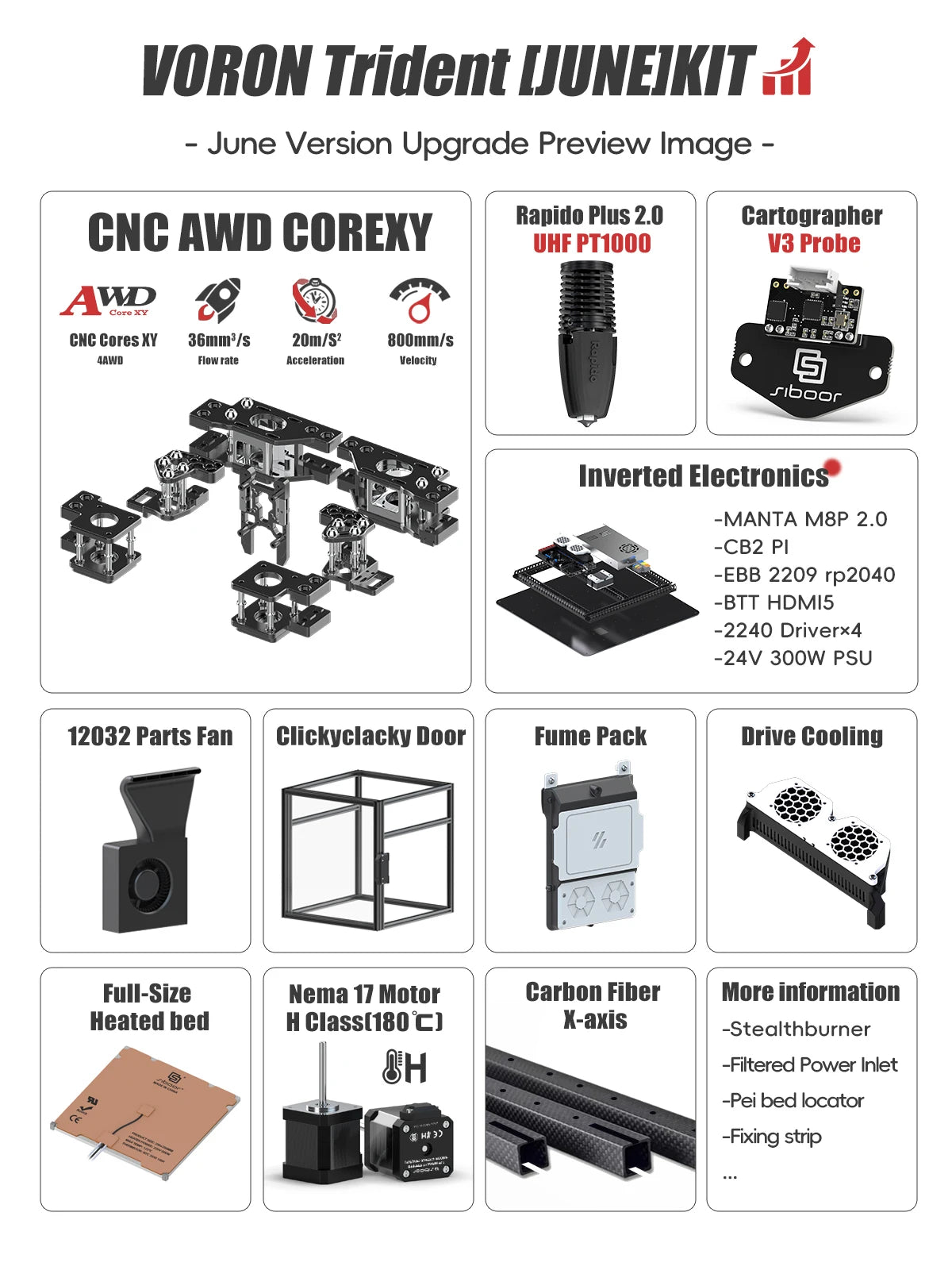

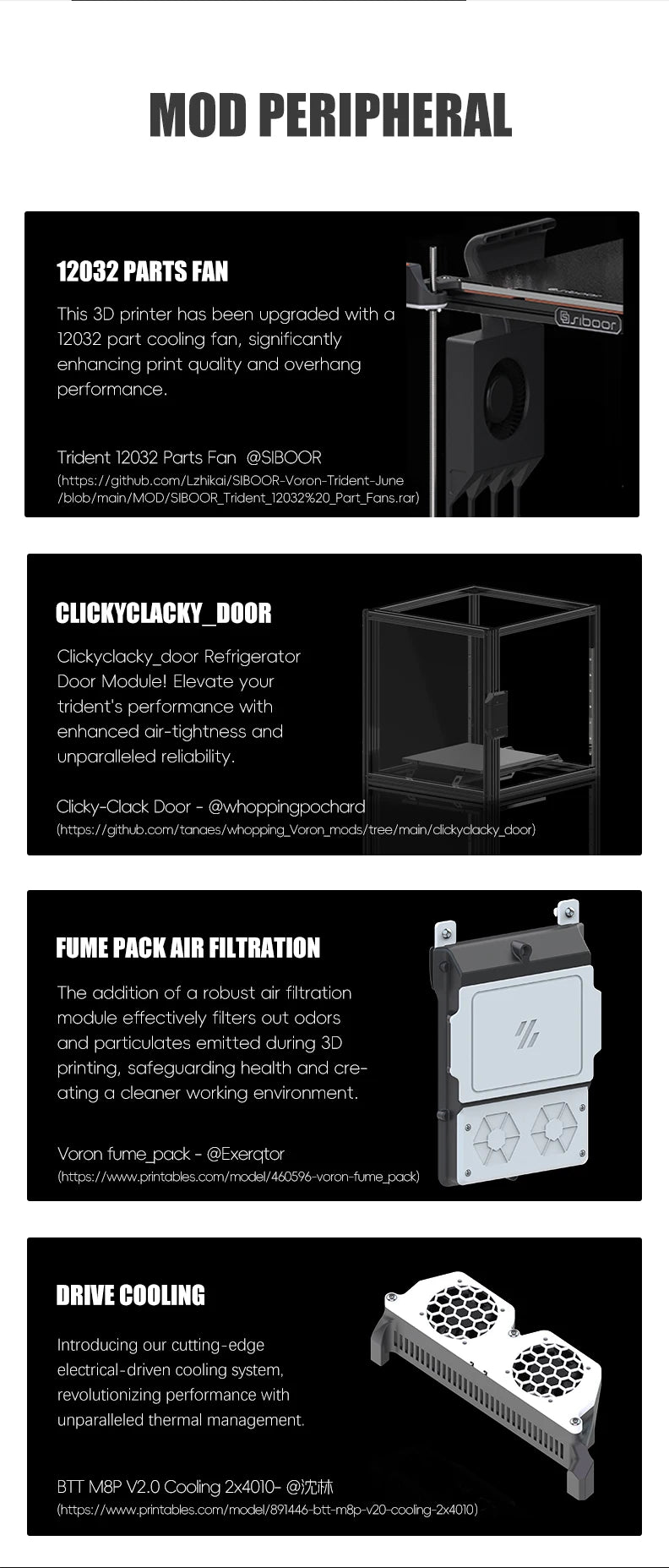

Additional Mods:

12032 Side-Blowing Fan: Enhances part cooling and improves print quality.

ClickyClacky Door: Aids in maintaining a clean and controlled environment.

FumePack Air Filtration Module: Reduces airborne particles and maintains a healthier workspace.

Advanced Drive Cooling Solutions: Ensures efficient cooling of drive components.

Design Features:

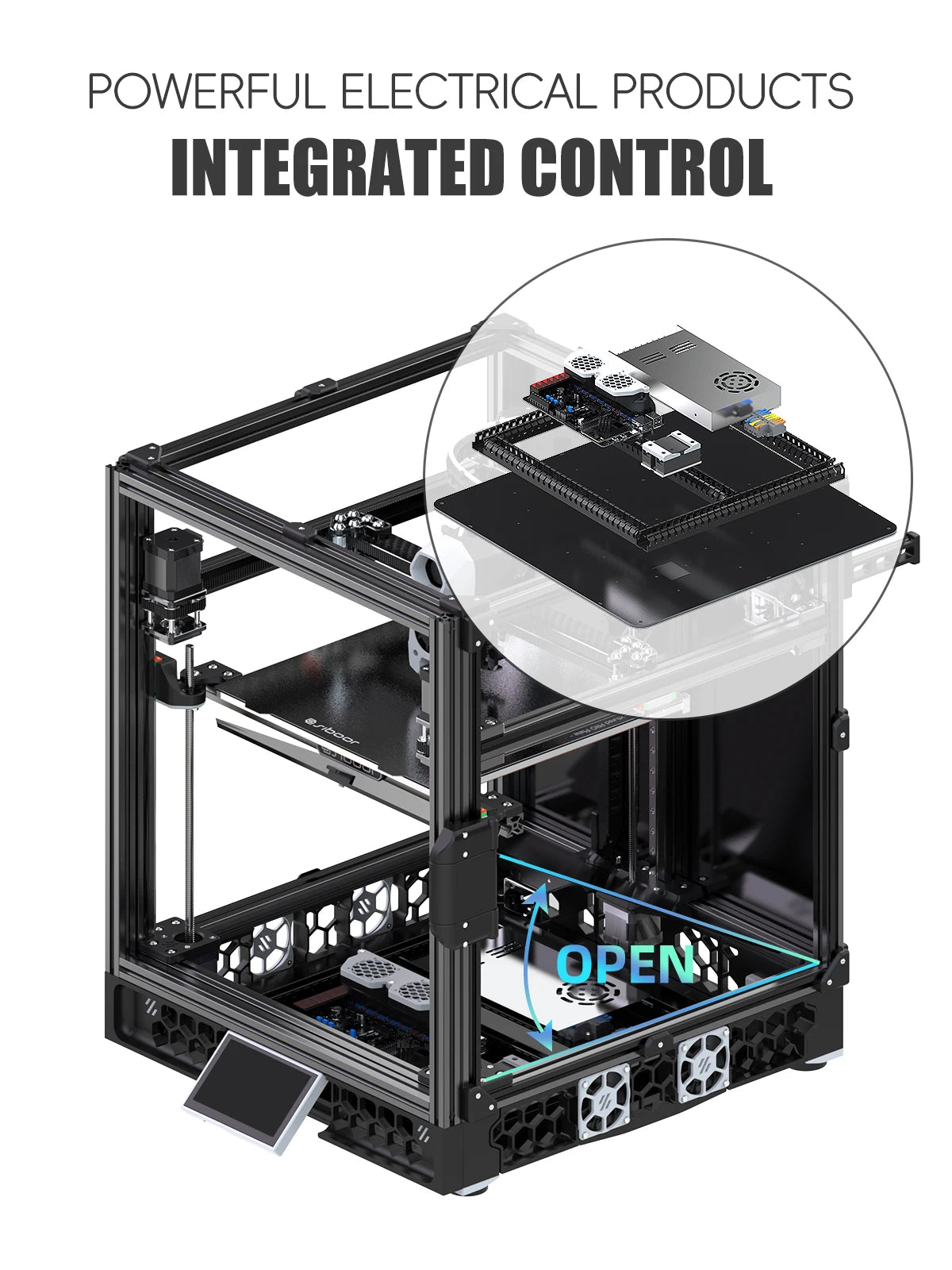

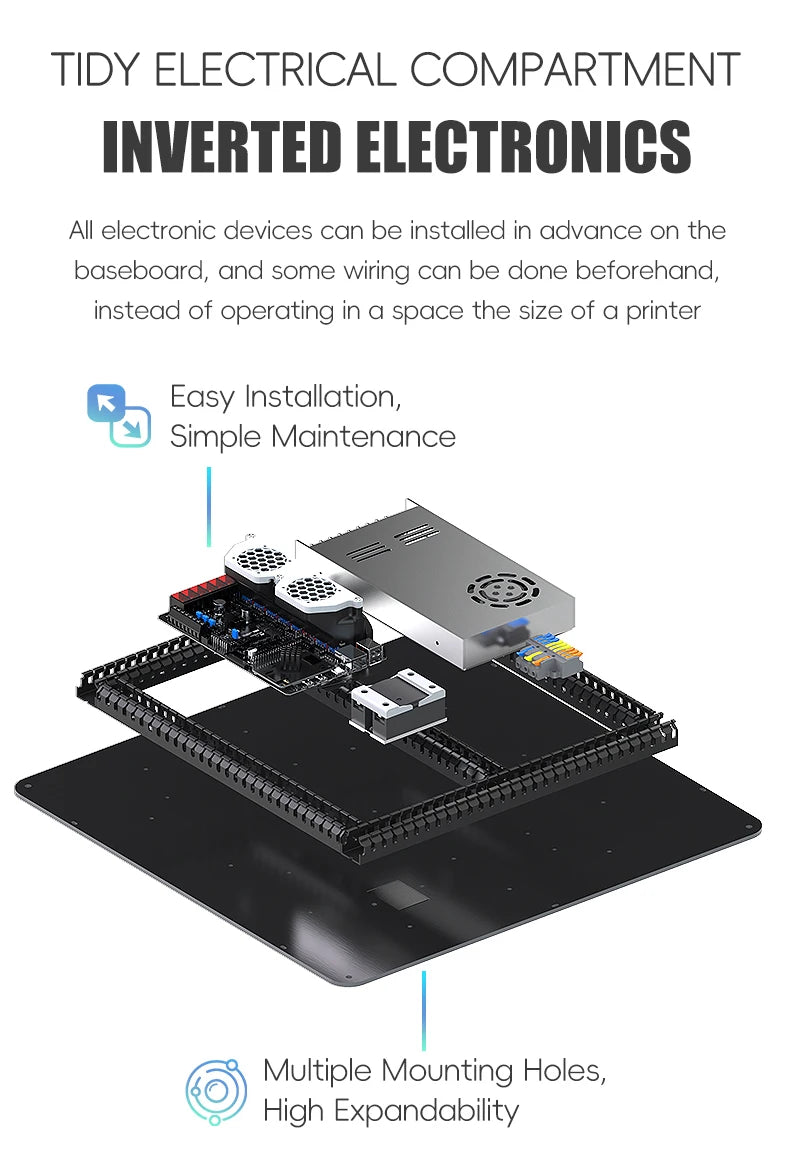

Inverted Electronics Compartment: Facilitates easy maintenance with an accessible design.

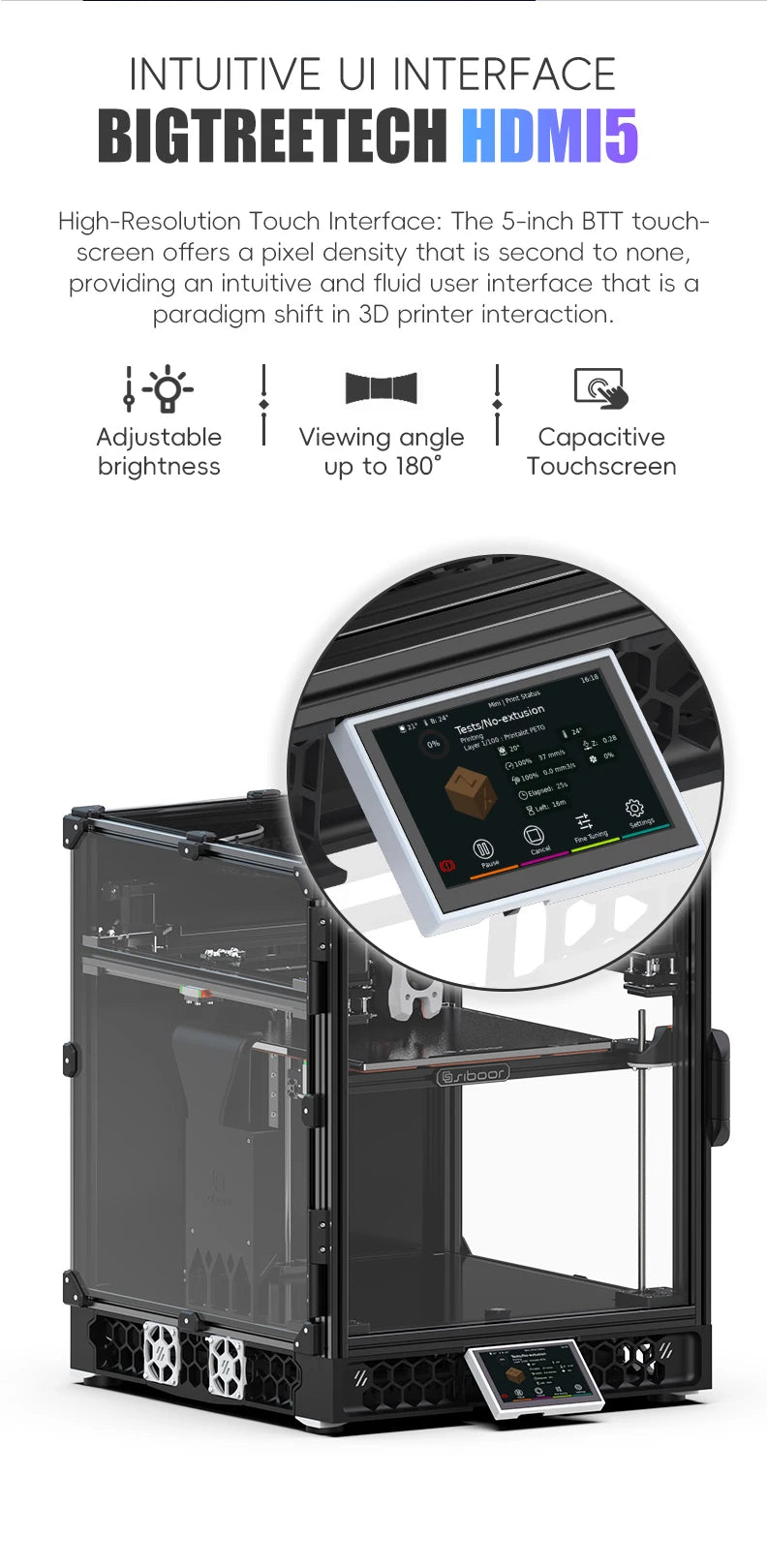

HDMI Touchscreen: Offers a high-definition interface for intuitive control.

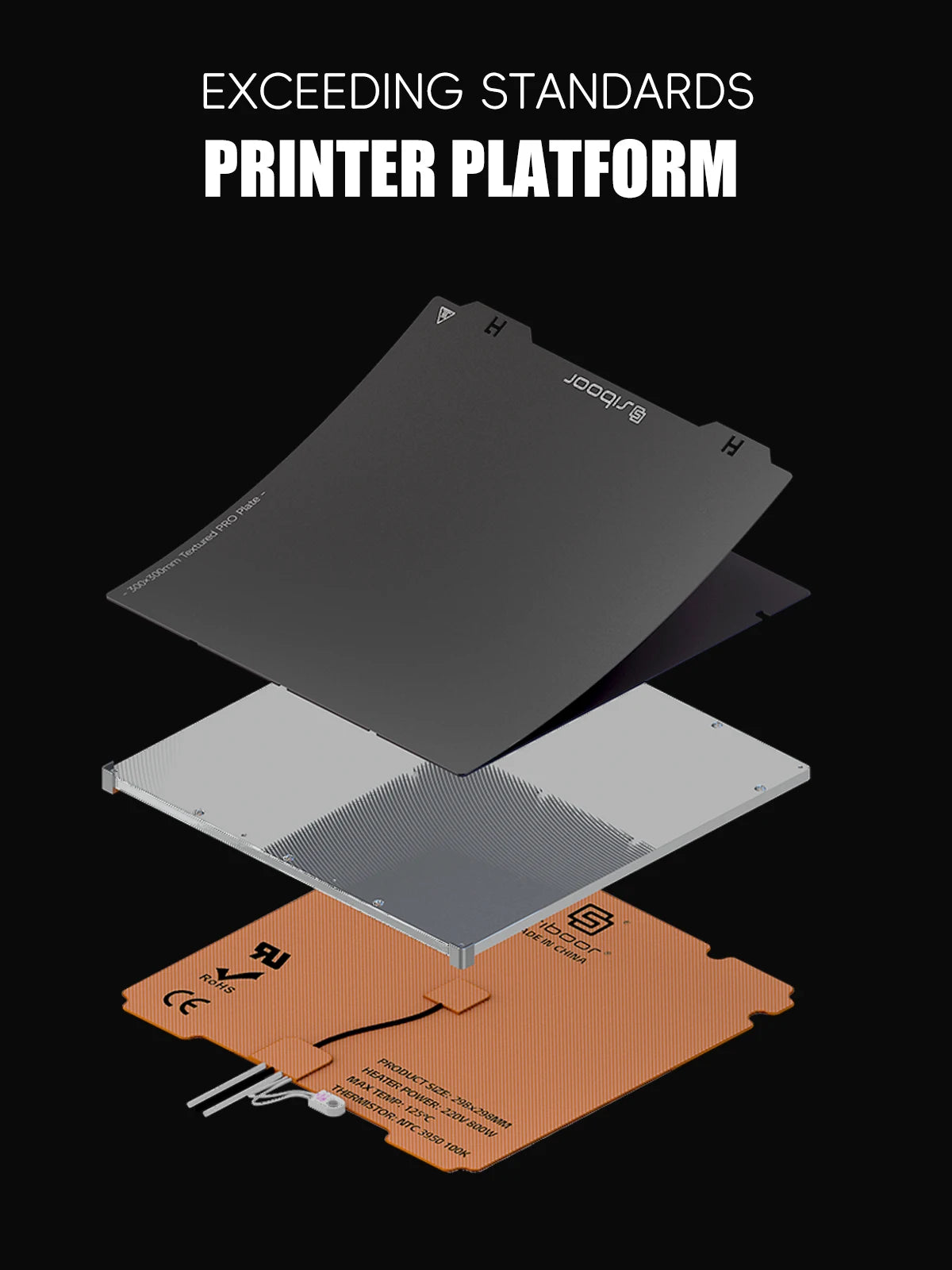

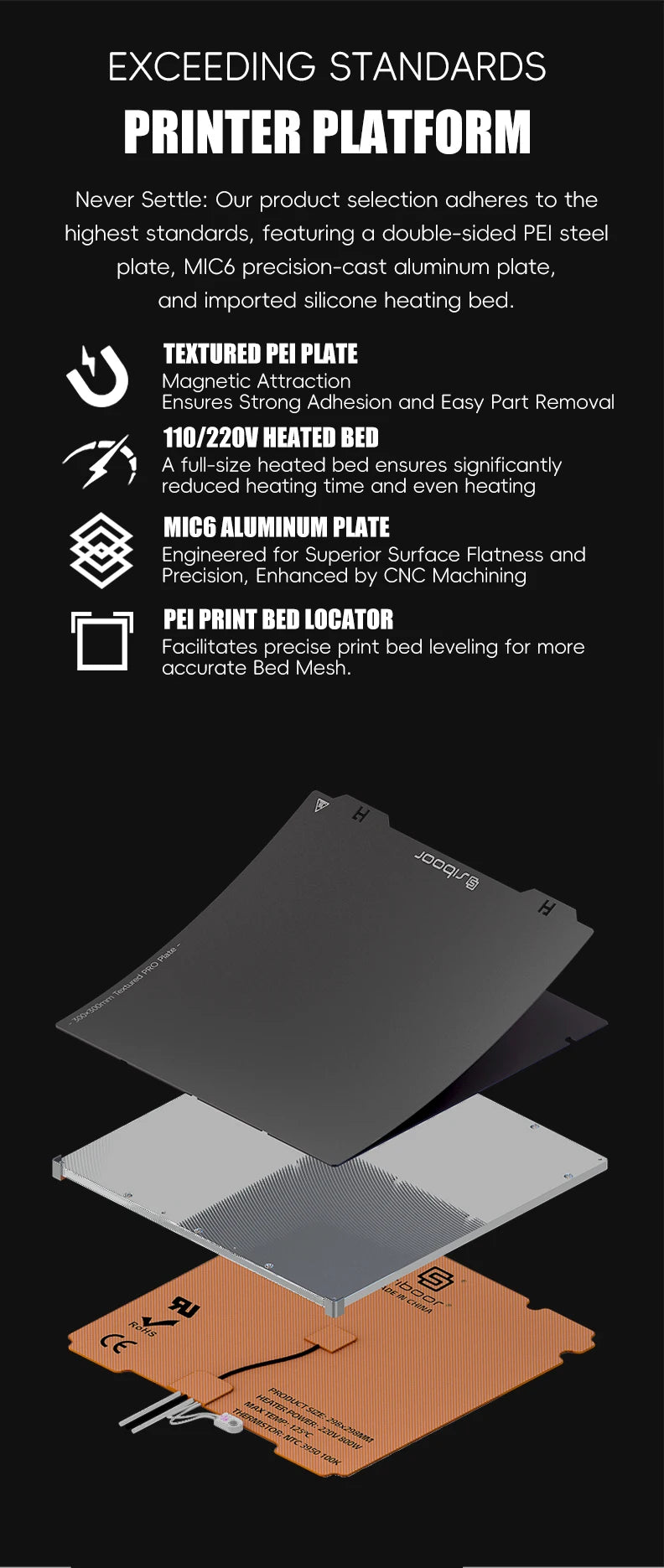

MIC6 Aluminum Platform: Features a black matte PRO print surface for superior build quality.

The SIBOOR Trident combines cutting-edge technology with high-speed performance, making it a premier choice for high-quality and reliable 3D printing.
